Flailbot Mini

Scroll to learn more

The smallest of the Flailbot range, but packed with all the innovative features of the larger models. Easy access to site, with a lower gross weight and smaller foot print.

With a punchy 23hp engine, whilst it appears to be small, the Flailbot Mini model is very capable. Cutting head size is 1000mm (32 3/4”) and this makes this model perfect for small access sites, and to be transported on smaller vehicles between sites.

Key Features

  • 2 cylinder Briggs & Stratton petrol engine
  • 17 litre (4.5 USG) fuel capacity
  • Closed circuit piston pump cutting circuit
  • 40 degree working angle
  • Hydrostatic transmission

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available / Not Applicable

Model Mini (23hp)

Operation

Max Slope  40°
Transmission  Hydrostatic
Speed  0-6 km/h
Weight  520kg / 1,146lbs

Engine

Brand / Make Briggs & Stratton
Model 2 Cyclinders, Petrol
Engine Size 0.627 Litres / 38.26 in3
Power 17 kW / 23 Cv
Max Torque 44 Nm  / 72 ft-lb @ 1800 rpm
Intake Aspirated
Cooling Liquid
Air Filter Dry
Diesel Tank Capacity 17 Litres / 4.5 USG
Engine Oil Capacity 1.4 Litres / 0.4 USG

Electrical Circuit

Operating Voltage 12 Vcc
Alternator 16 Amp
Battery 18 Ah

Hydraulic System

Displacement Triple piston pump with variable engine size and closed circuit
Displacement Capacity 64 Litres / 17 USG max @ 3200 rpm
Displacement Pressure 250 Bar max
Services Gear Pump
Services Capacity 13 Litres / 3.4 USG max @ 3200 rpm
Services Pressure 180 Bar max
Tool Closed Circuit Piston Pump
Tool Capacity 22 Litres / 5.8 USG max @ 3200 rpm
Tool Pressure 180 Bar max
Oil Tank Capacity 22 Litres / 5.8 USG
Operating Oil Quantity 30 Litres / 8 USG

Controls

Brand IMET
Frequency 2.4 Ghz
Range Signal 150m / 492′
Battery Rechargeable

Working Dimensions & Weights

Engine Size / Capacity: 23hp / 0.627 Litres / 38.26in3
Flailibot with Oil and Fuel: 520kg / 1,146lbs
1000 Flailhead: 160kg / 352lbs
Remote Control Distance up to: 150m / 492′
Working angle up to: 40°

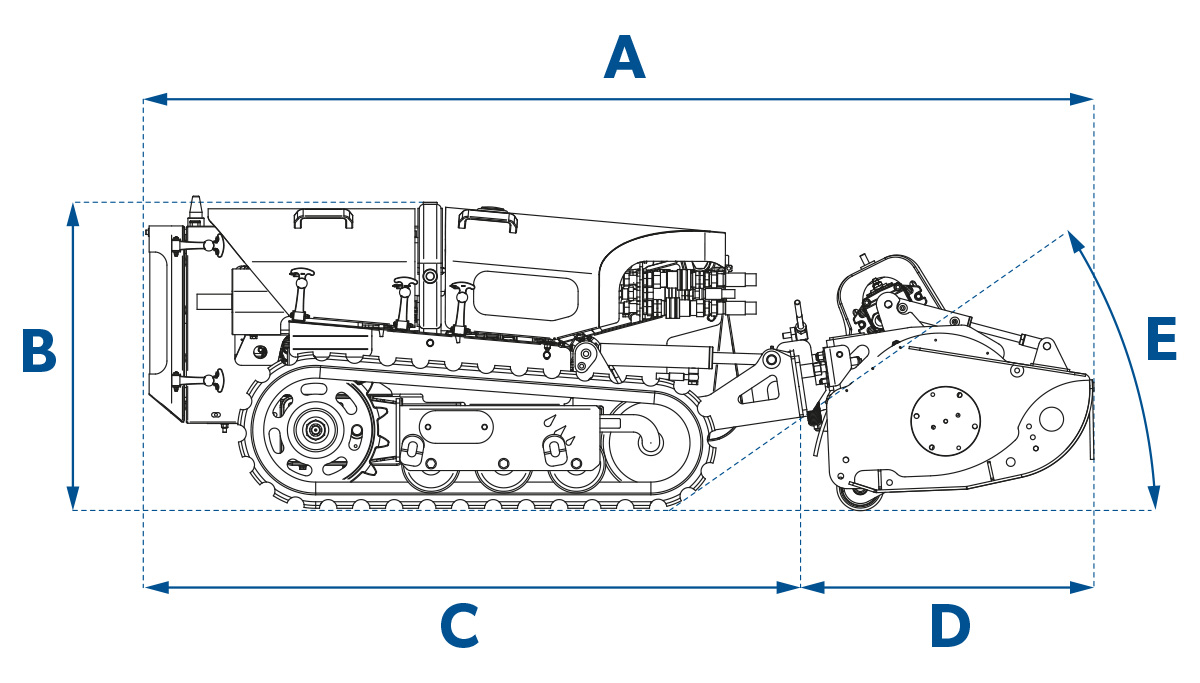

  Metric Imperial
A 2167mm 71 ¼”
B 703mm 23″
C 1493mm 48 ¾”
D 674mm 22 ¼”
E 35° 35°

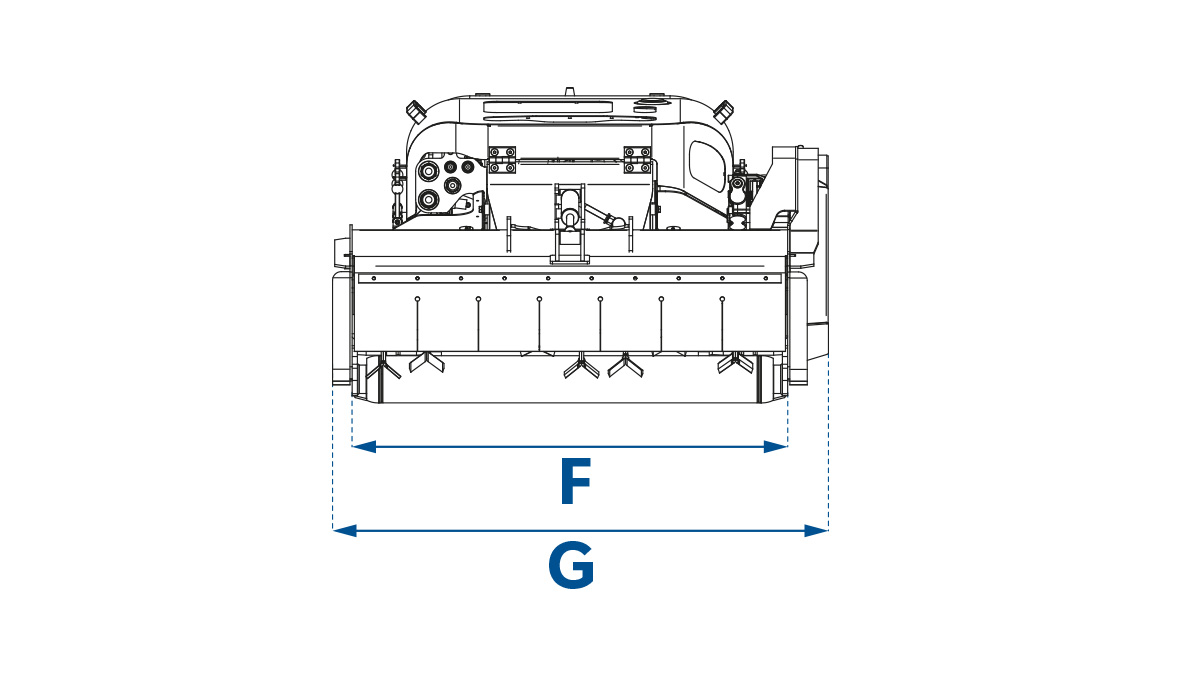

  Metric Imperial
F 1000mm 32 ¾”
G 1295mm 37 ¼”

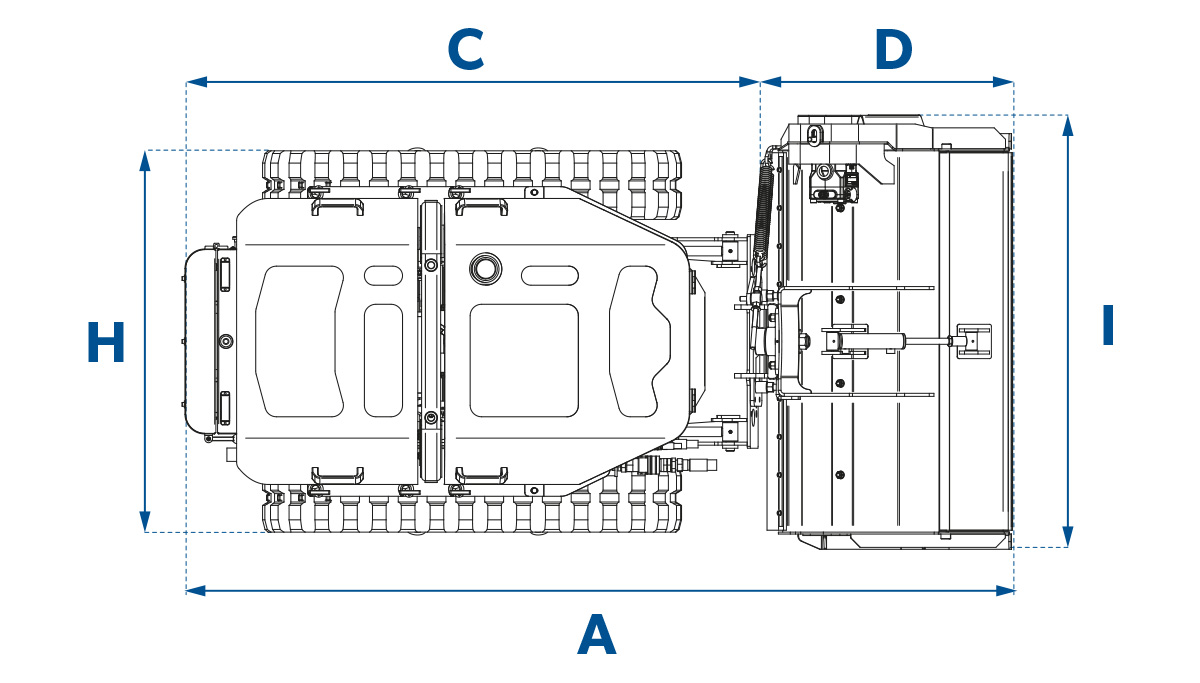

  Metric Imperial
A 2167mm 71 ¾”
C 1493mm 48 ¾”
D 1670mm 22 ¼”
H 1000mm 32 ¾”
I 1169mm 37 ¼”



Our range of Accessories for the Flailbot Mini

Forestry Head

Designed to cut thicker vegetation than the standard cutting head, with swinging hammers as standard and a fixed hammer rotor option.
Forestry Head

Front End Loader

Front end loader with parallel lift function as standard for ultimate bucket control. (NB. Bucket sold separately).
Front End Loader

Snow Blower

Hydraulic powered snow blower, fitted with a swivelling chute to blow snow, LH & RH and straight ahead.
Snow Blower

Stump Grinder

Powerful, yet compact designed stump grinder. For removal of tree stumps after cutting the tree down.
Stump Grinder

Sweeper

Powerful, yet compact designed stump grinder. For removal of tree stumps after cutting the tree down.
Sweeper

Trencher

For cutting trenches in restricted areas, and on prestigious surfaces, cuts a small trench for pipes and cables to be laid.
Trencher
