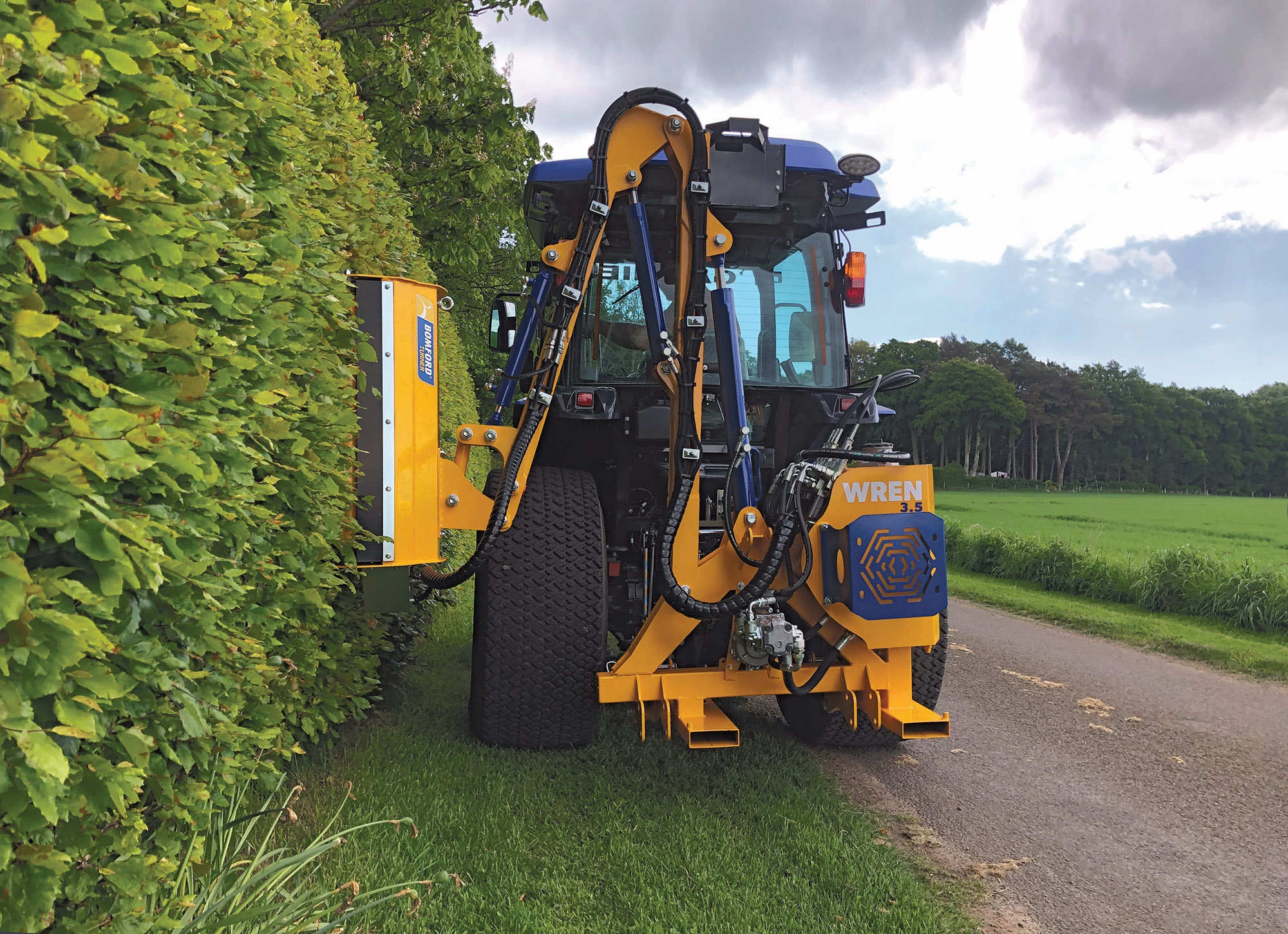

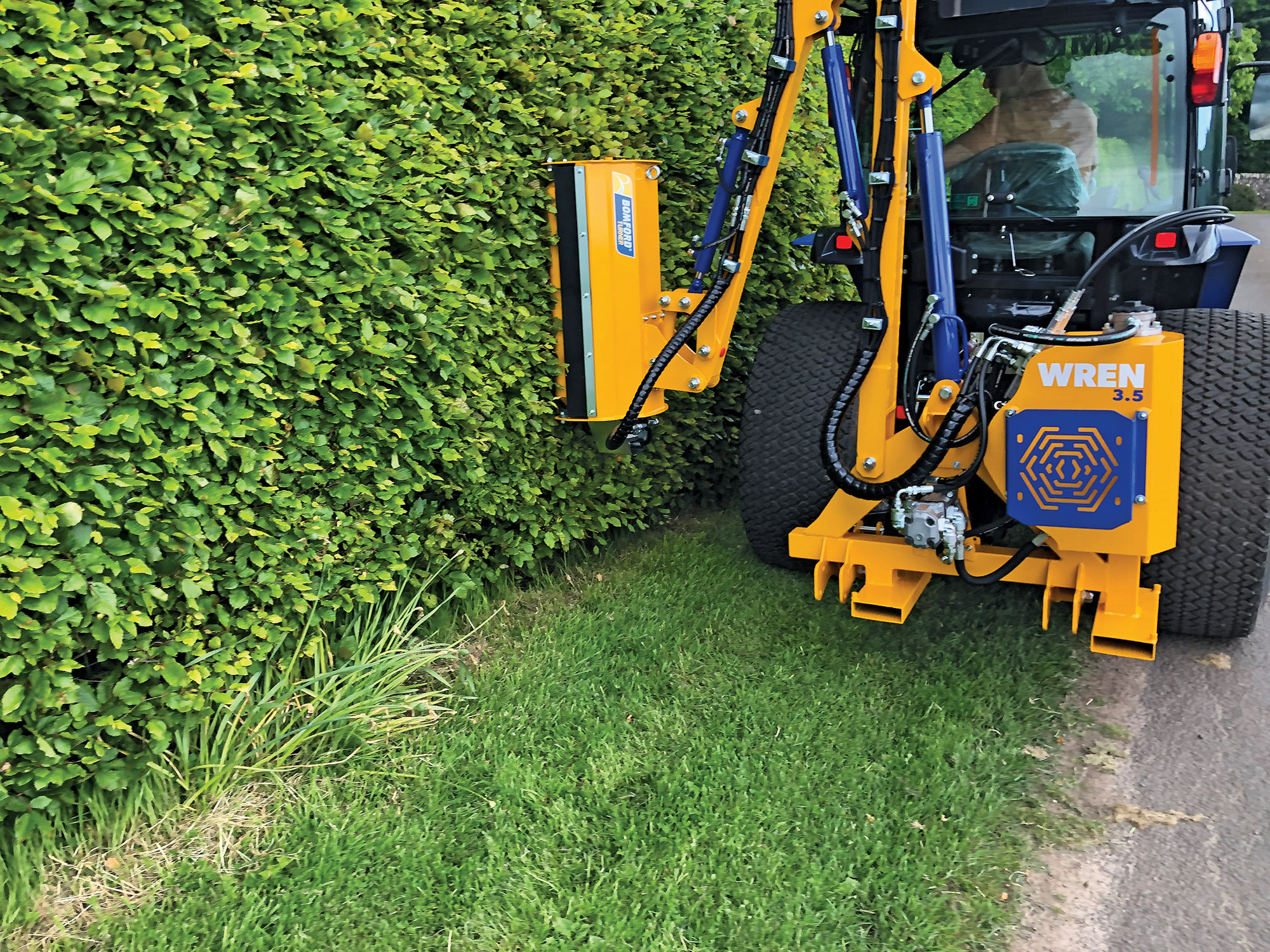

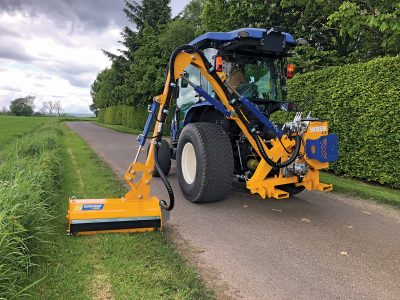

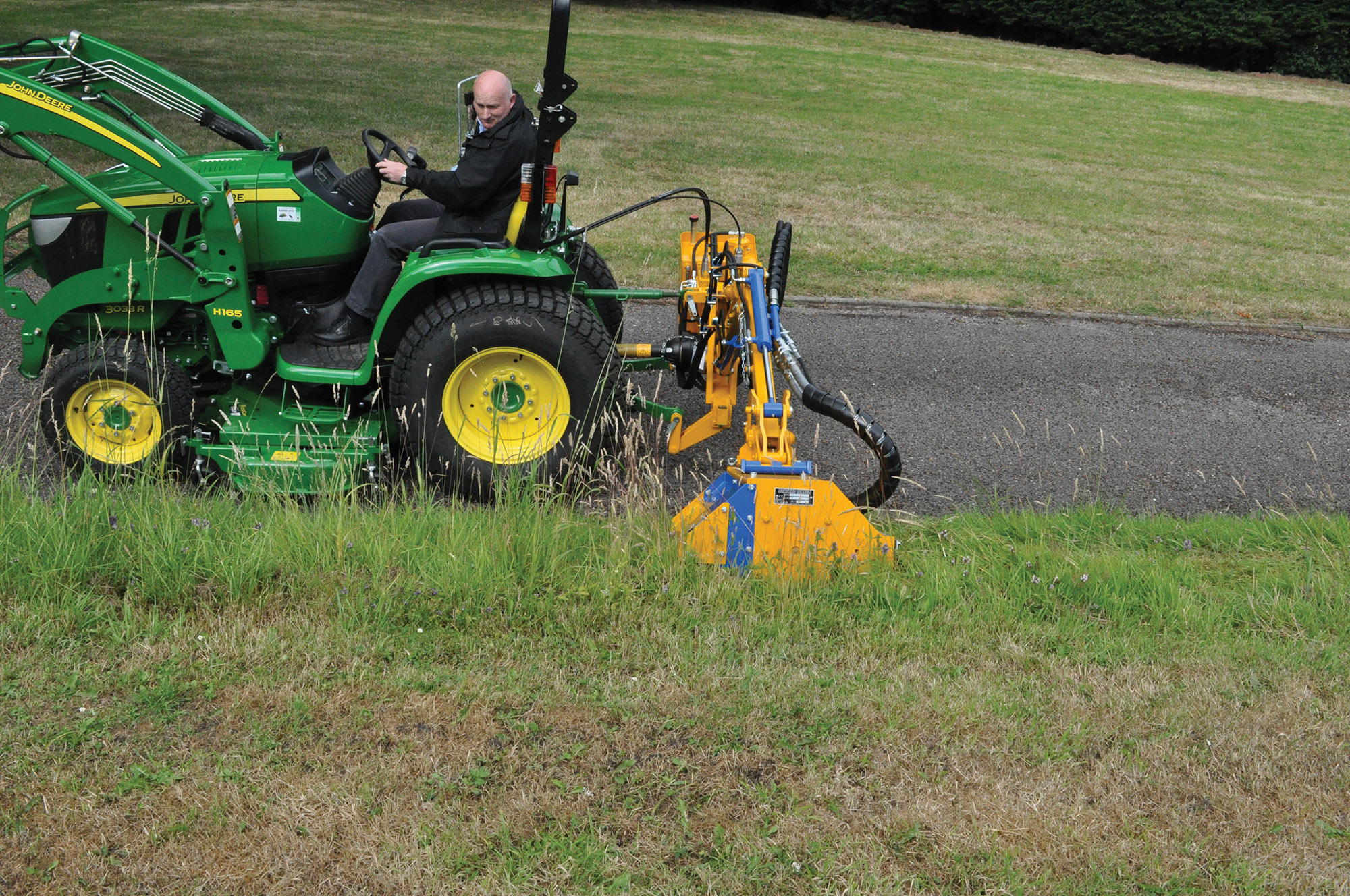

Compact yet powerful, the Wren offers an excellent entry-level solution to your landscaping maintenance needs.

Fitted with twin pumps and fully independent hydraulics, the Wren can operate a range of different attachments.

Key Features:

  • 3.5m reach
  • Left or right hand cutting option
  • Cable control
  • Mechanical breakout
  • Cutter bar option

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available

Models 3.5m (11’5″)

Tractor Requirements

Minimum Horse Power
25hp
Minimum Weight
750kg / 1653lbs

Base Mounting Options

Front Mount
Not available
Mid Mount
Not available
Rear Mount standard
Three Point Linkage (CAT 1 & II) standard
Axle Bracket Not available

Overall Machine Parameters

Machine weight with head and oil 350kg / 772lbs
Capacity of oil tank
55L / 14.5USG

Controls

Cable control (CC) standard
Low pressure hydraulics (LPH) Not available
Electronic proportional control (EPP) Not available
Intelligent control system (ICS) Not available
Cable rotor reverse standard
Electronic rotor reverse Not available

Hydraulic System

System Capacity 30hp
Pump flow rate (mini) 50L / 13.2USG
Pump Type (Gear / Piston / Helical) Gear
Pump Arrangement (Twin / Tandem Inline) Twin
Independent Hydraulics standard
Oil Cooler optional

Arm features and main frame

Telescopic arm Not available
Telescopic arm stroke Not available
Power slew Not available
Power slew angle Not available
Gravity breakout standard
Hydraulic breakout Not available
Armfloat – manual standard
Armfloat – electronic Not available
Headfloat – manual standard
Headfloat – electronic Not available
Left hand cutting standard
Right hand cutting standard
Left or right hand cutting Not available

Cutting heads

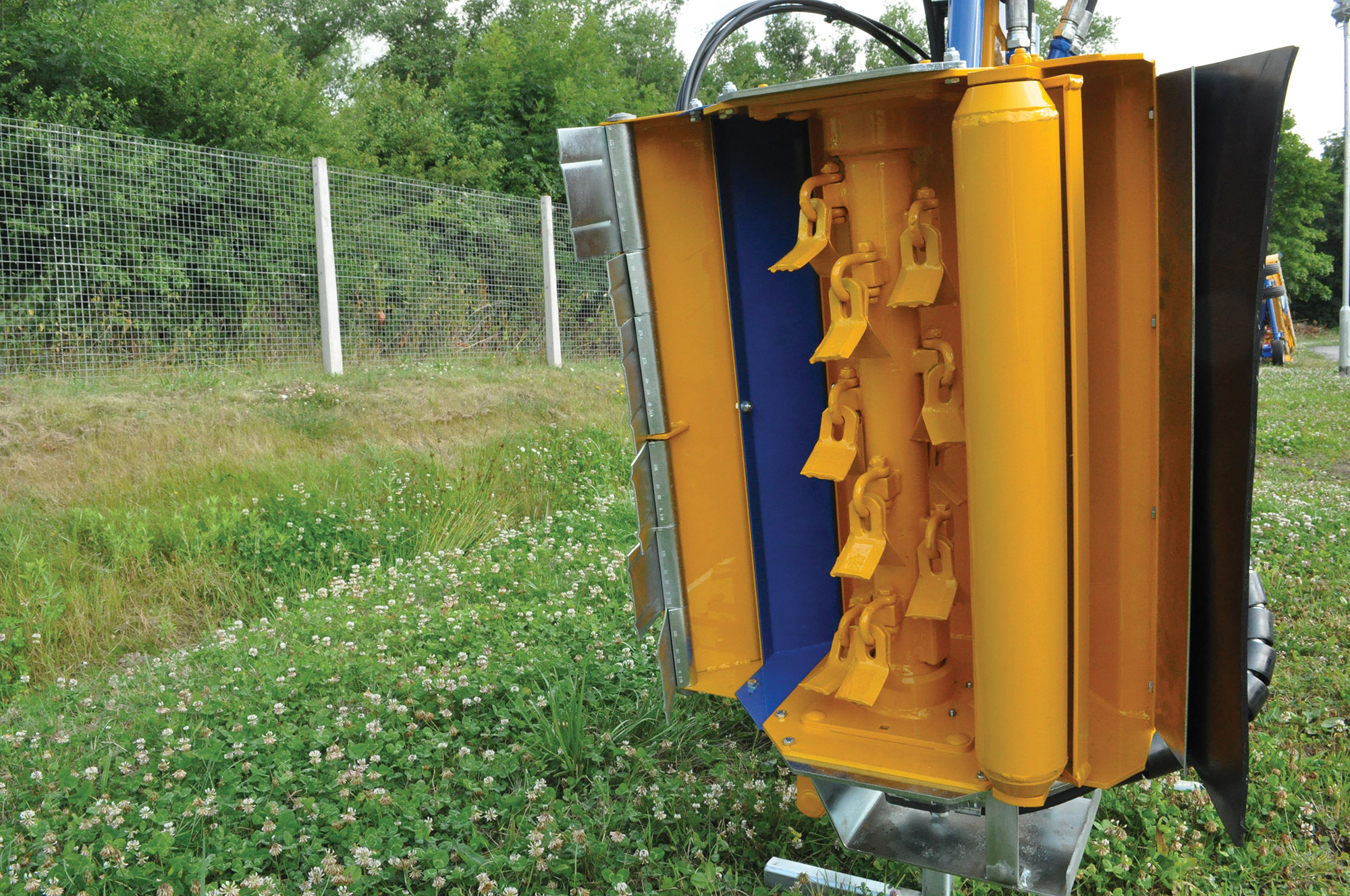

0.8m Flailhead standard
1.5m Cutter Bar
optional



Working reach dimensions

Head used for calculations: 0.8m flail head

3.5m (11’5″)
A 3.3m  10’10”
B 3.3m  10’10”
C  2.2m  7’3″
D  1.8m 5’11”
E 3.5m 11’6″
X  1.0m 3’3″
Y   0.7m 2’4″
