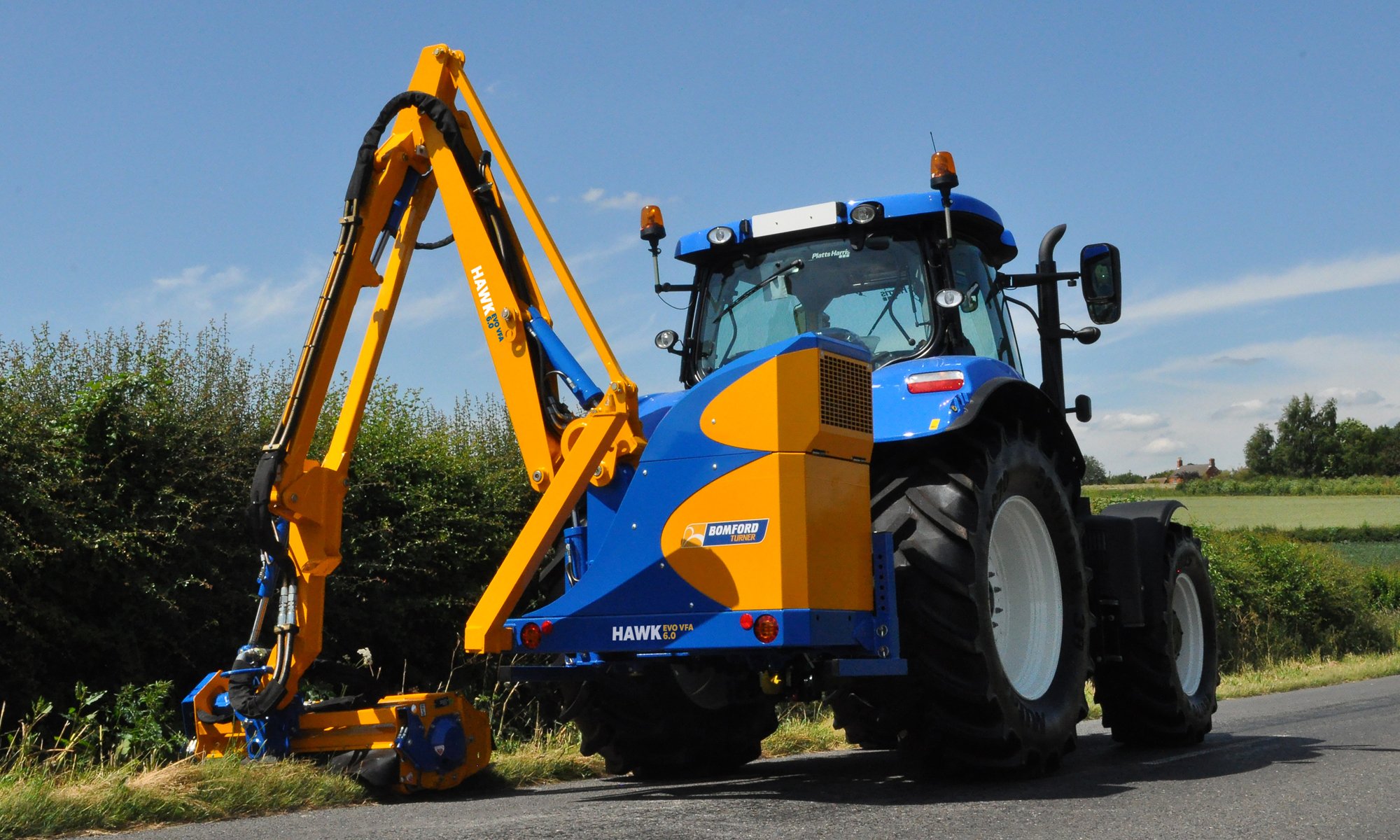

Hawk Evo VFA

Scroll to learn more

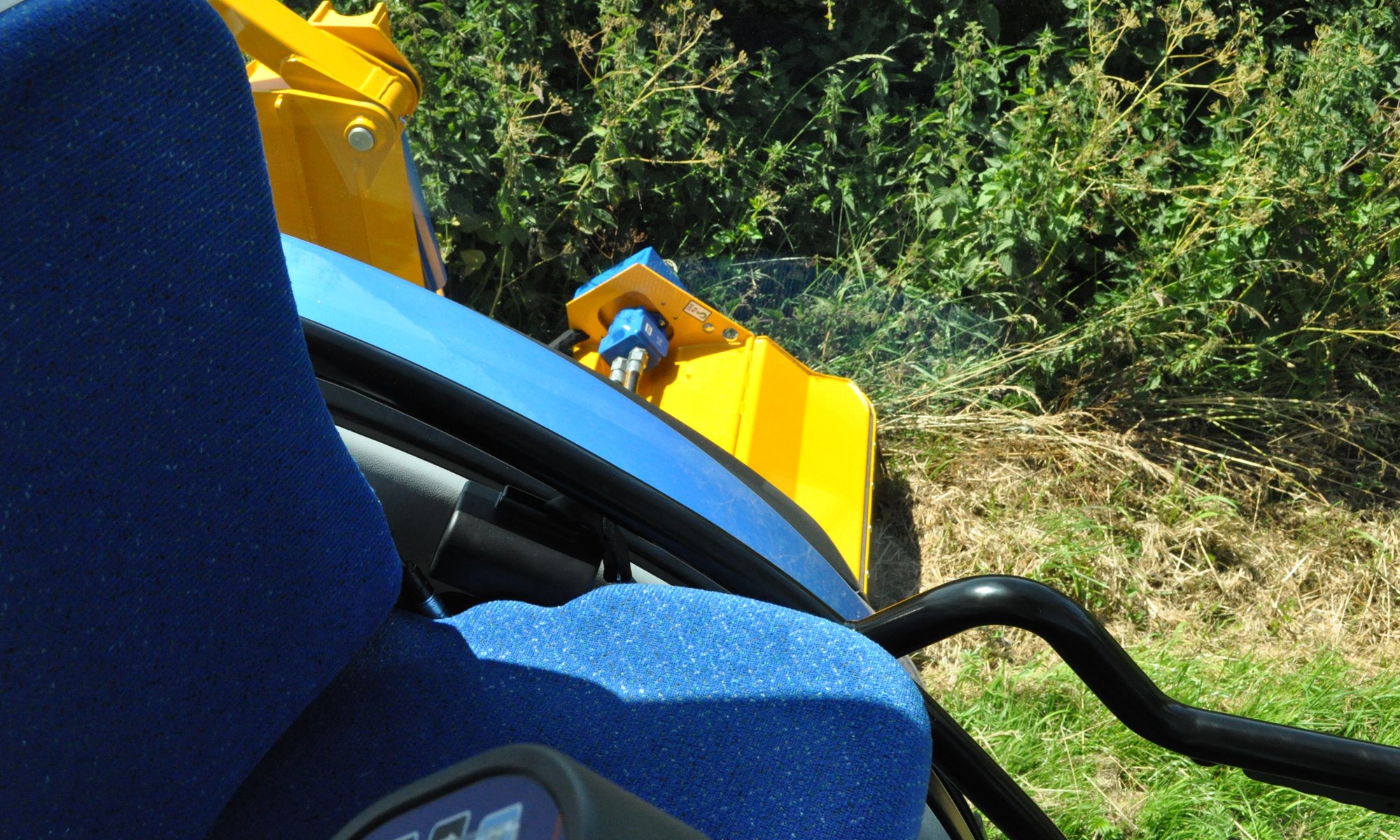

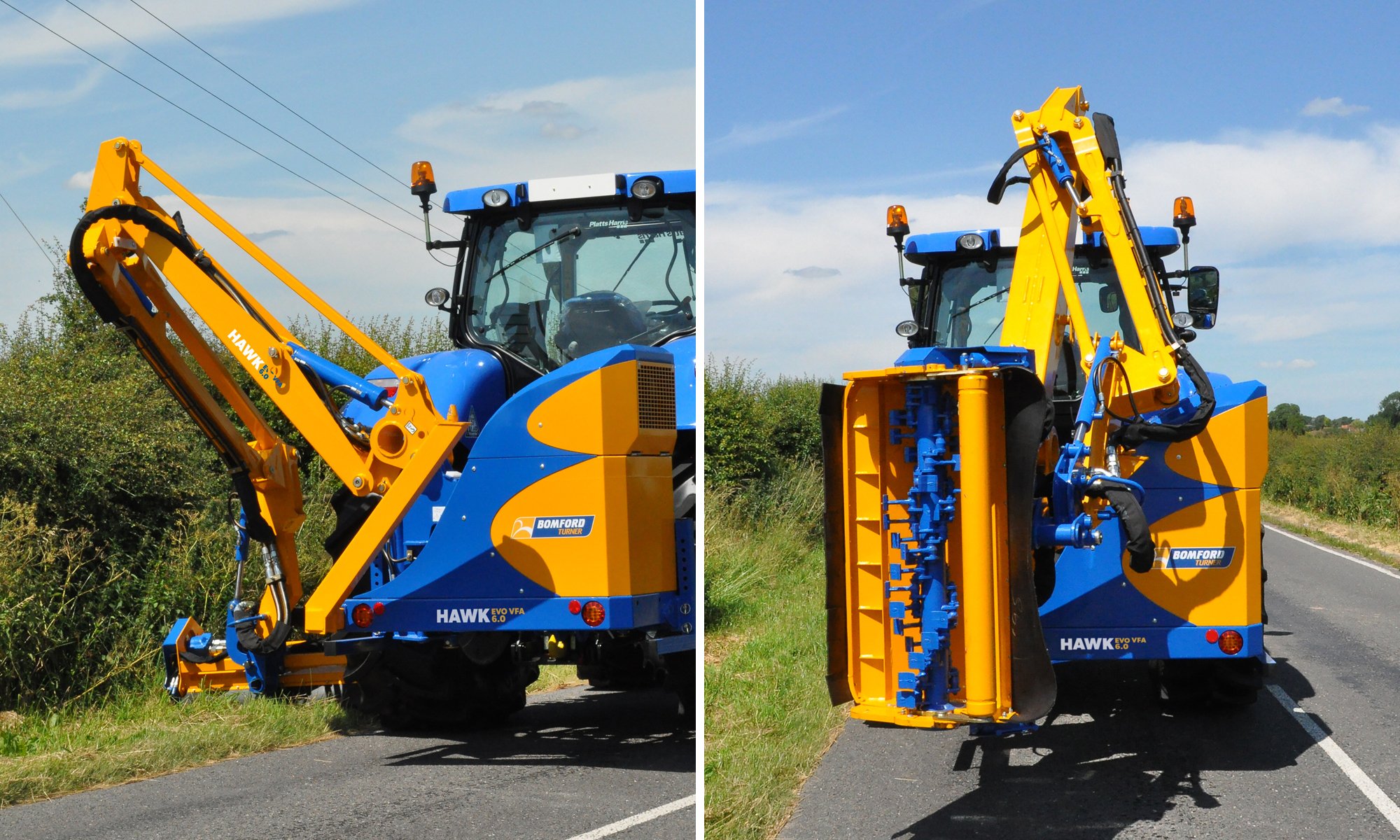

The Hawk Evo VFA (Variable Forward Arm) is perfect for contractors and municipal environments, where the added benefits of a forward arm is required to improve visibility.

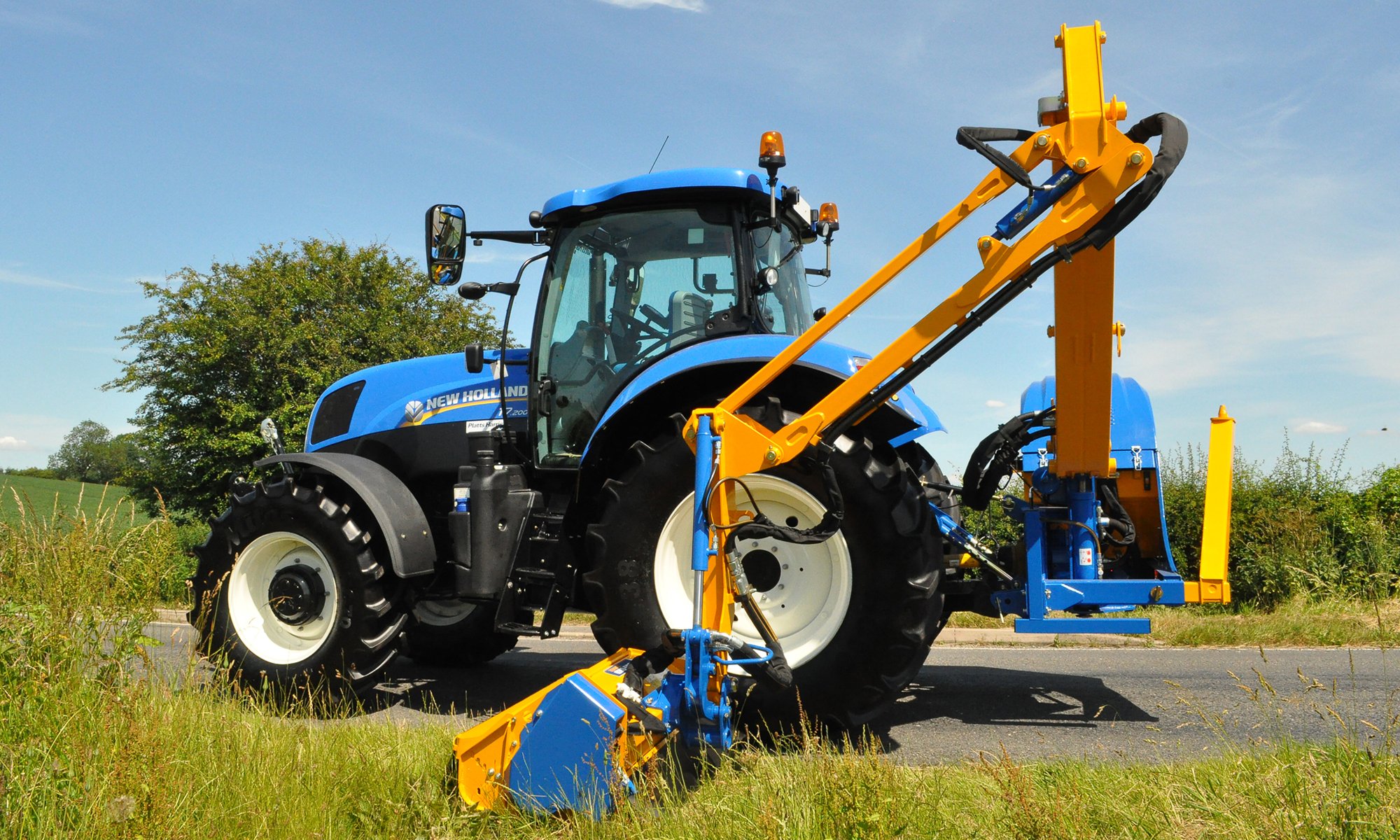

With a maximum reach of 6m, the Hawk Evo VFA can cope with every job it is tasked with. The impressive 1.8m maximum travel on the variable forward arm (VFA) gives 1.6m forward working.

Key Features:

  • 6.0m reach
  • Over 1.8m traverse on variable forward arm
  • Heavy duty linkage or axle bracket mounted
  • 125 l/min independent system

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available

Model Hawk Evo 6.0m P VFA (19’8)

Tractor Requirements

Minimum horse power 80hp
Minimum weight 5000kg / 11023Lbs

Base Unit Mounting Options

Front mount Not Available
Mid-mount Not Available
Rear mount Standard
Three point linkage (CAT II) Standard
Axle bracket Optional

Overall machine parameters

Machine weight with head and oil 1860kg / 4100Lbs
Capacity of oil tank 200 Litres / 52.8USG
Weight of machine with oil but without head 1600kg / 3527Lbs

Controls

Cable control (CC) Standard
Low pressure hydraulics (LPH) Not Available
Electronic proportional control (EPP) Optional
Intelligent control system (ICS) Optional
Cable rotor reverse Standard
Electronic rotor reverse Optional

Hydraulic system

System capacbility 74 hp
Pump flow rate 125 Litres / 33USG
Pump type (Gear / Piston / Helical) Gear
Pump arrangement (Twin / Tandem Inline) Twin
Independent hydraulics Standard
Oil cooler Standard

Arm features and main frame

Forward arm 1600mm / 5’3″
Telescopic arm Not Available
Telescopic arm stroke Not Available
Power slew Standard
Power slew angle 94°
Gravity breakout protection Not Available
Hydraulic breakout protection Standard
Arm float – Manual operation Optional
Arm float – Electronic operation Optional
Head float – Manual operation Optional
Head float – Electronic operation Standard
Left hand cutting Optional
Right hand cutting Optional
Left and right hand cutting Not Available

Arm attachments available

Variable track bracket (VTB) Optional
Sheartrim cutter bar Optional
Pro-Saw Optional
Ditch cleaner Optional
Rotary head Optional

Accessories

Road lights Standard
Debris blower Optional
Cab guard kit Standard

Cutting Heads

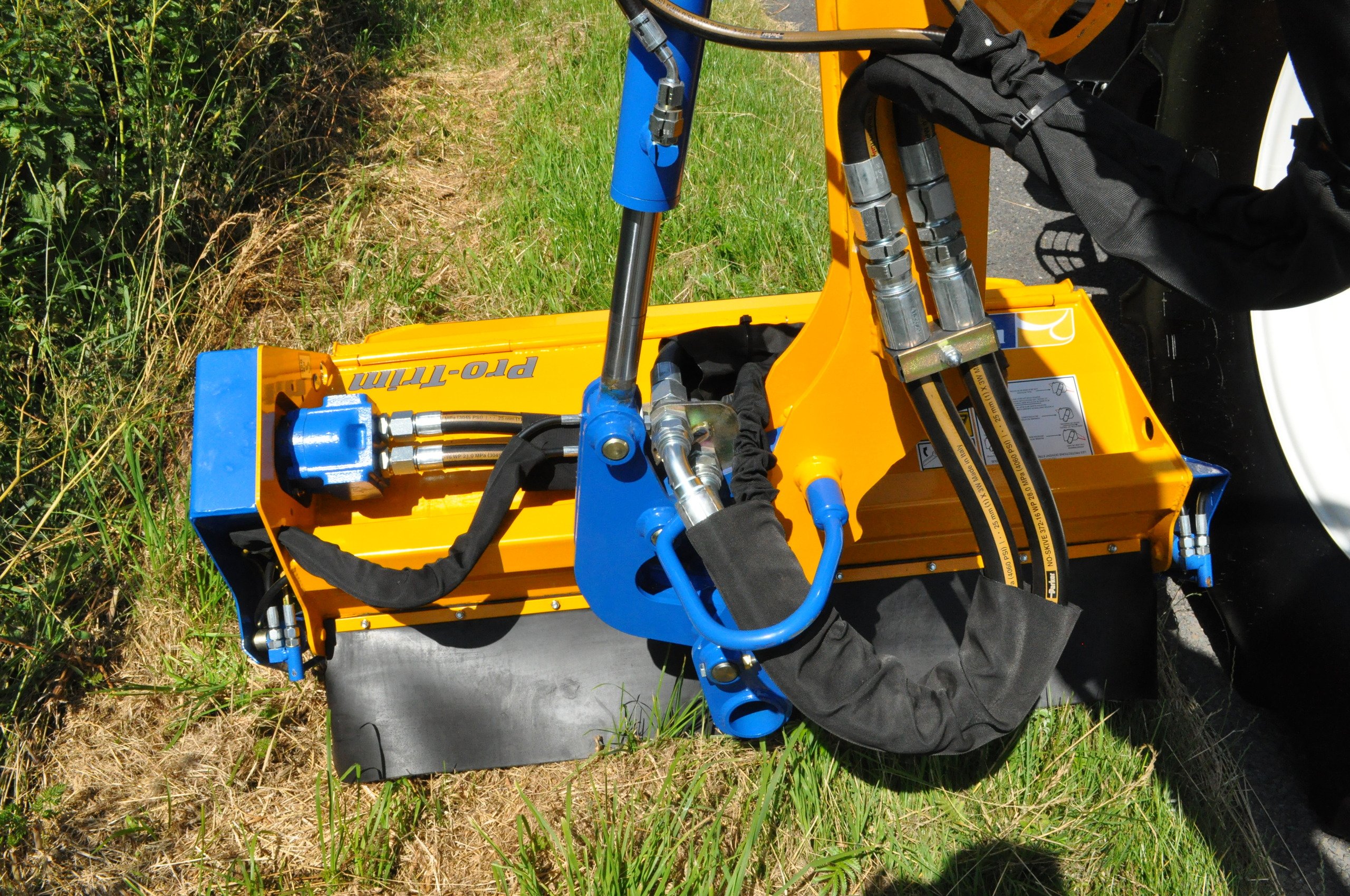

1.2m Pro-Trim with 115mm roller Optional
1.2m Pro-Trim with 150mm roller Optional
1.5m Pro-Trim with 115mm roller Optional
1.5m Pro-Trim with 150mm roller Optional
1.2m Pro-Trim ISMP with 115mm roller Optional
1.2m Pro-Trim ISMP with 150mm roller Optional
1.2m Pro-Cut with 115mm roller Optional
1.2m Pro-Cut with 150mm roller Optional
1.5m Pro-Cut with 115mm roller Optional
1.5m Pro-Cut with 150mm roller Optional
1.2m Pro-Cut ISMP with 115mm roller Optional
1.2m Pro-Cut ISMP with 150mm roller Optional

Flails

See the table below to see which flail heads are available for the different cutting heads listed above.

  BB MP44 HS60 Pro Flail T40 T60 True Cut Bushmaster
1.2m Pro-Trim with 115mm roller Optional Optional Optional Optional Optional Optional Optional Not Available
1.2m Pro-Trim with 150mm roller Optional Optional Optional Optional Optional Optional Optional Not Available
1.2m Pro-Trim ISMP with 115mm roller Optional Optional Optional Optional Optional Optional Optional Standard
1.2m Pro-Trim ISMP with 150mm roller Optional Optional Optional Optional Optional Optional Optional Standard
1.5m Pro-Trim with 115mm roller Optional Optional Optional Optional Optional Optional Optional Not Available
1.5m Pro-Trim with 150mm roller Optional Optional Optional Optional Optional Optional Optional Not Available
1.2m Pro-Cut with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.5m Pro-Cut with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.5m Pro-Cut with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional

Working Reach Dimensions

Head used to calculations: 1.2 Pro-Trim


Side Reach – 6.0m VFA (19’8)
A 6.0m 19’8″
B 5.96m 19’7″
C 4.18m 13’9″
D 4.99m 16’5″
E 6.16m 20’3″
X 1.35m 4’5″
Y 1.0m 3’4″

Forward Reach – 6.0m VFA (19’8)
A 6.0m 19’8″
F 5.39m 17’8″
G 5.9m 19’4″
H 1.6m 5’3″
J 0.56m 1’10”
