Buccaneer

Scroll to learn more

Suitable for use with tractors of between 40hp to 180hp and features a heavy duty gearbox. The robust build means that the smaller 1.3m cutting machine weighs 658kg while the wider 2.5m model comes in at 2,095Kgs.

The standard specification of the new Bomford Buccaneer HDX includes a front double-row chain guard, Cat 2/3 three-point linkage and heavy-duty replaceable skids. A front mounted version of the Buccaneer HDX is also available.

Key Features:

  • Choice of 6 cutting width options
  • Fixed or swinging flail options

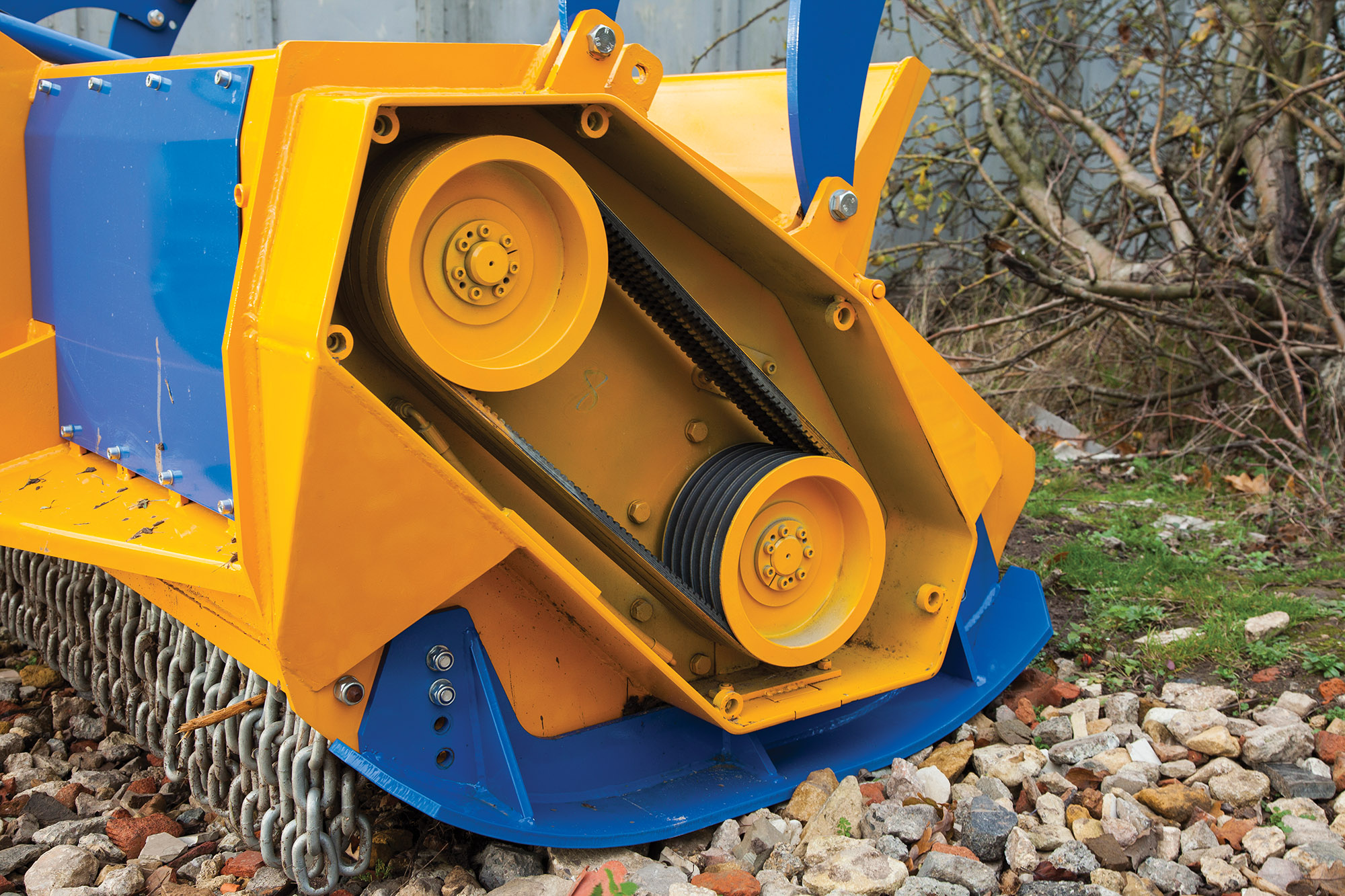

  • Six belt driven (12 on HDX model)
  • Hydraulically adjustable throughout flap
  • 40-180hp tractor requirement options
  • Rear pushbar standard on 2.24m models
  • Replaceable skids
  • 540rpm or 1,000rpm

SD Range

Model SD130 SD150 SD180 SD200 SD225
Width of cut 1300mm / 4’3″ 1500mm / 4’11” 1800mm / 5’10” 2000mm / 6″6″ 2250mm / 7’4″
Overall width 1500mm / 4’11” 1750mm / 5’8″ 2000mm / 6’6″ 2250mm / 7’4″ 2500mm / 8’2″
Number of Hammers 20 24 28  32 36
PTO speed 540 540 540  540 540
Hammer type Swing Swing Swing Swing  Swing
Weight 658kg / 1451lbs 788kg / 1737lbs 952kg / 2099lbs 1116kg / 2460lbs 1280kg / 2820lbs
Tractor HP 40-120hp 50-120hp 65-120hp 75-120hp

90-120hp

Additional features RR Pushbar RR Pushbar RR Pushbar RR Pushbar RR Pushbar

SDF Range

Model SDF130 SDF150 SDF180 SDF200 SDF225
Width of cut 1300mm / 4’3″ 1500mm / 4’11” 1800mm / 5’10” 2000mm / 6’6″ 2250mm / 7’4″
Overall width 1500mm / 4’11” 1750mm / 5’8″ 2000mm / 6’6″ 2250mm / 7’4″ 2500mm / 8’2″
Number of Hammers 22 26 30  34 36
PTO speed 540 540 540  540 540
Hammer type Fixed Fixed Fixed Fixed Fixed
Weight 665kg / 1466lbs 815kg / 1797lbs 977kg / 2154lbs 1148kg / 2531lbs 1305kg / 2877lbs
Tractor HP 40-120hp 50-120hp 65-120hp 75-120hp

90-120hp

Additional features RR Pushbar RR Pushbar RR Pushbar RR Pushbar RR Pushbar

HDX Range

Model HDX180 HDX200 HDX225 HDX250
Width of cut 1800mm / 5’10” 2000mm / 6’6″ 2250mm / 7’4″ 2500mm / 8’2″
Overall width 2210mm / 7’3″ 2410mm / 7’10” 2660mm / 8’8″ 2720mm / 8’11”
Number of Hammers 16 20 20 24
PTO speed 1000 1000 1000 1000
Hammer type Swing Swing Swing Swing
Weight 1690kg / 3726lbs 1815kg / 4001lbs 1935kg / 4265lbs 2095kg / 4619lbs
Tractor HP 60-180hp 80-180hp 90-180hp

90-180hp

Additional features RR Pushbar RR Pushbar RR Pushbar RR Pushbar

HDXF Range

Model HDXF180 HDXF200 HDXF225 HDXF250
Width of cut 1800mm / 5’10” 2000mm / 6’6″ 2250mm / 7’4″ 2500mm / 8’2″
Overall width 2210mm / 7’3″ 2410mm / 7’10” 2660mm / 8’8″ 2720mm / 8’11”
Number of Hammers 30 34 36 40
PTO speed 1000 1000 1000 1000
Hammer type Fixed Fixed Fixed Fixed
Weight 1556kg / 3430lbs 1681kg / 3706lbs 1805kg / 3979lbs 1963kg / 4238lbs
Tractor HP 90-180hp 100-180hp 120-180hp

130-180hp

Additional features RR Pushbar RR Pushbar RR Pushbar RR Pushbar
