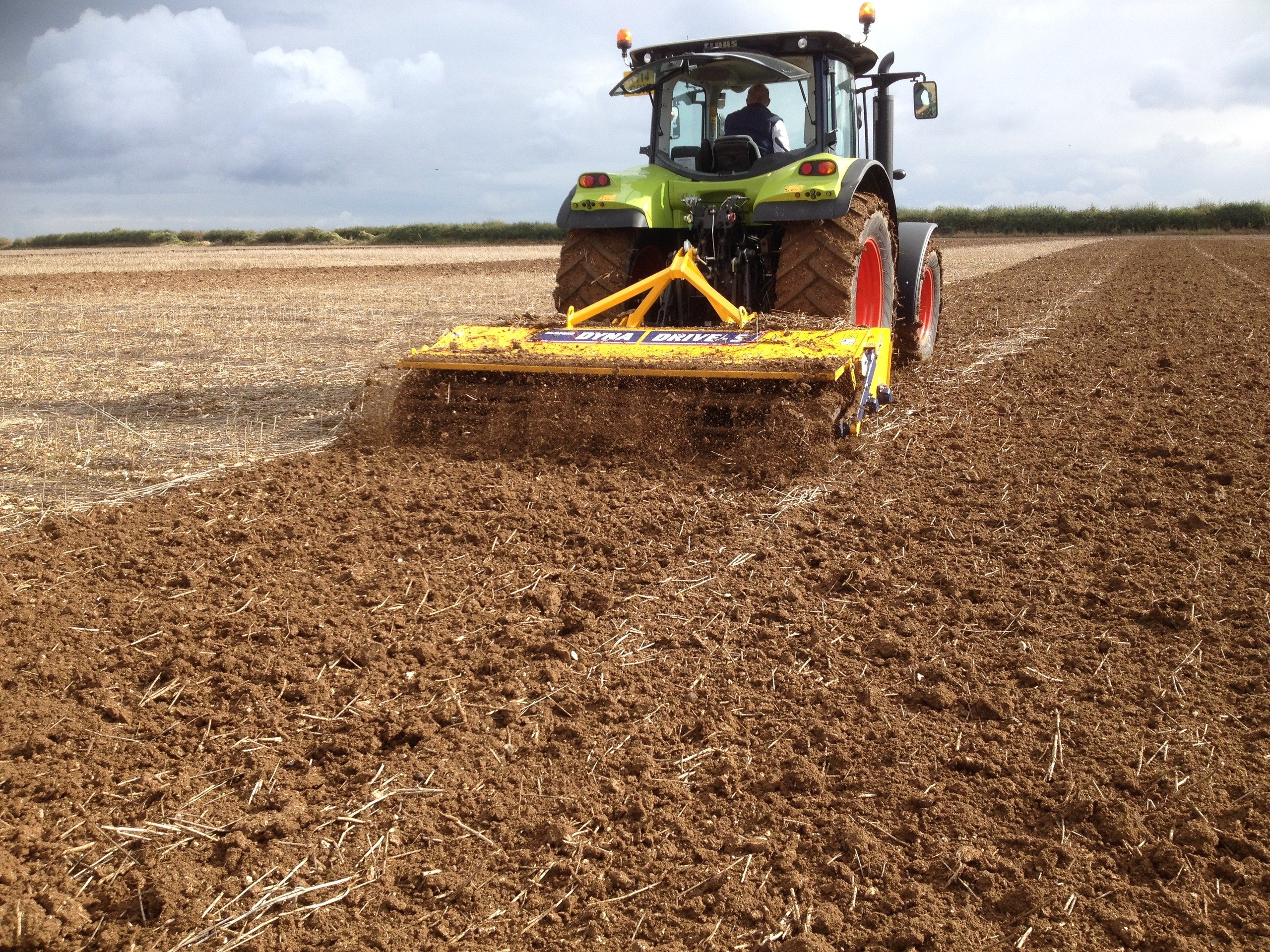

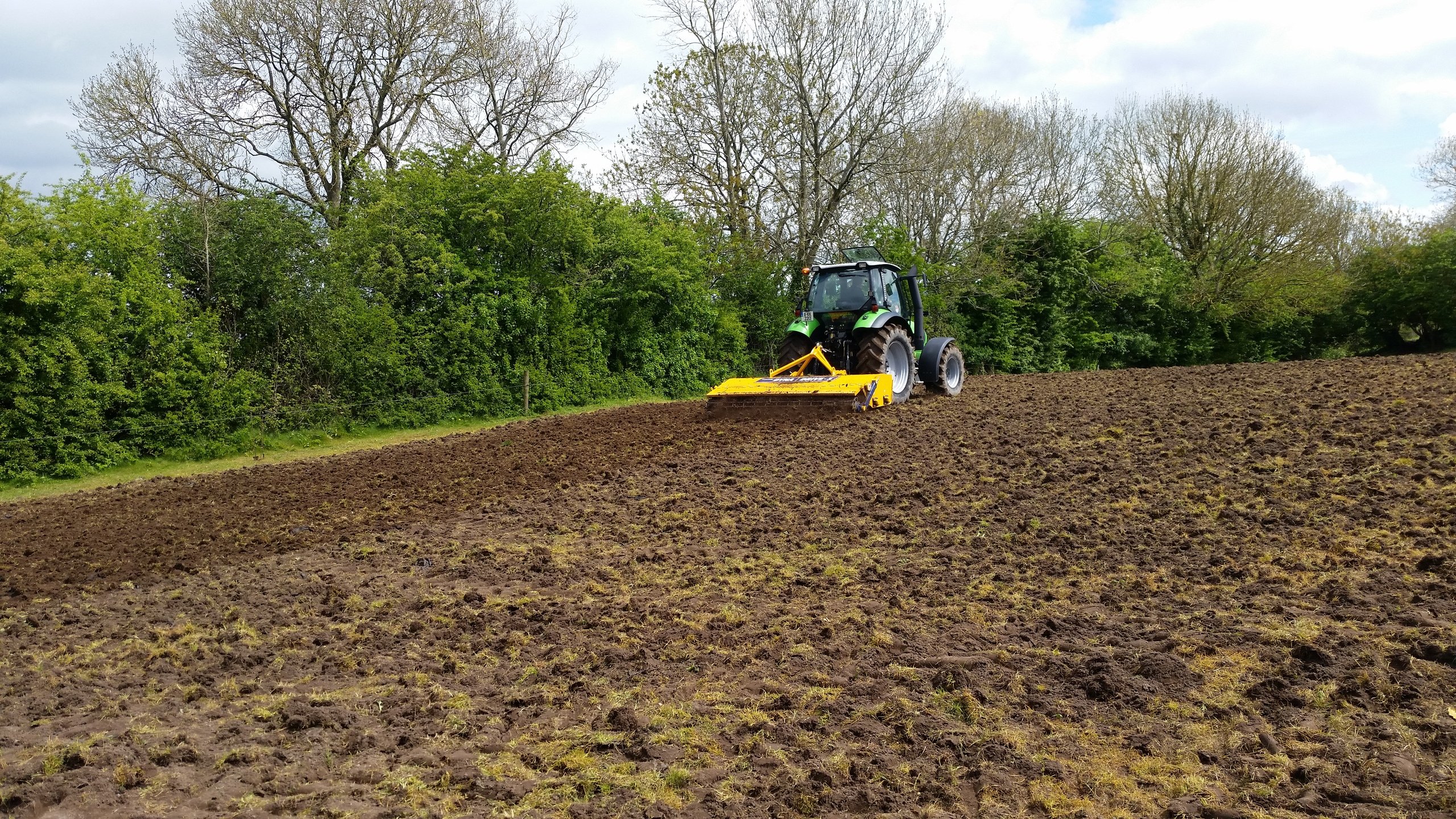

Dyna Drive

Scroll to learn more

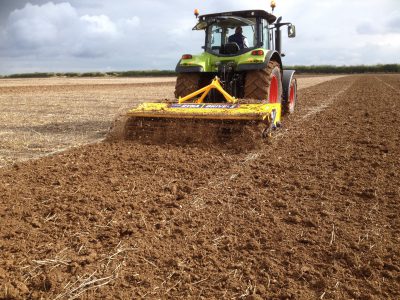

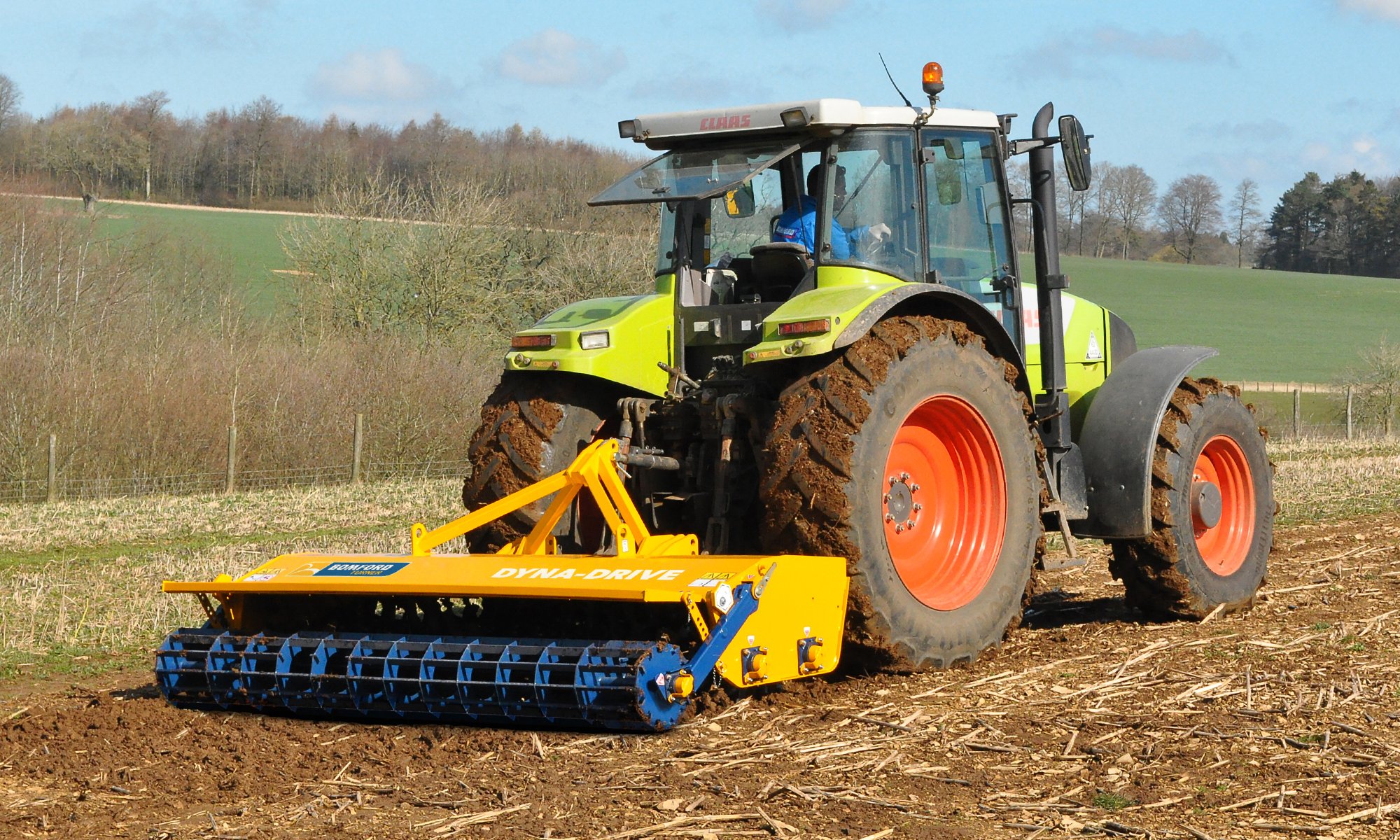

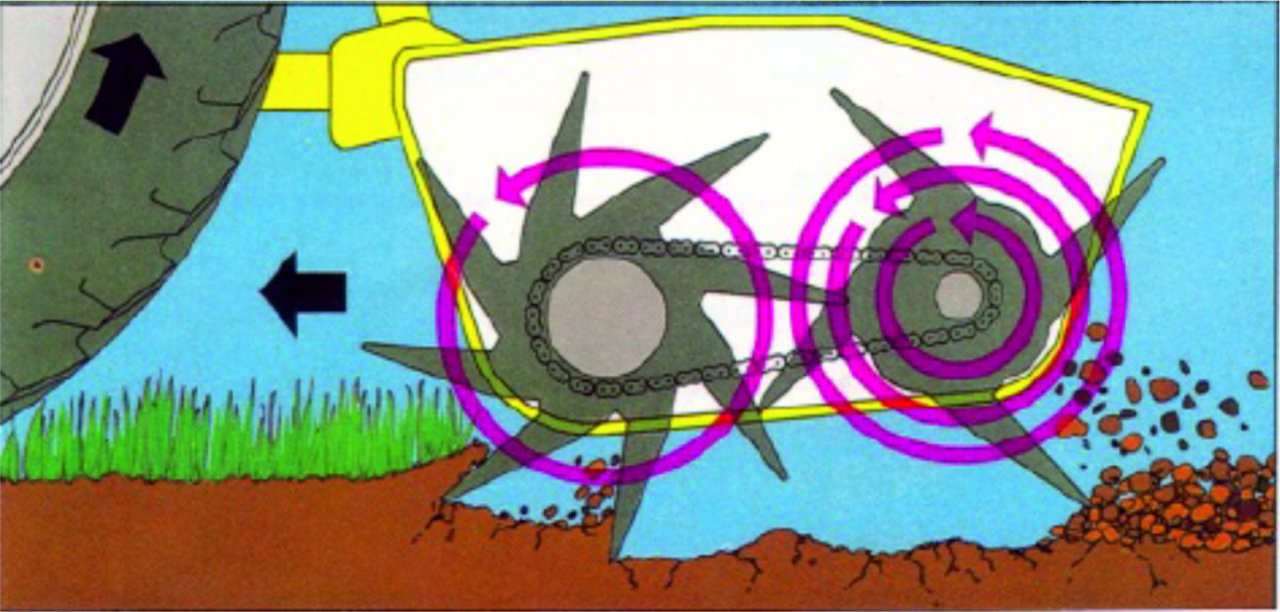

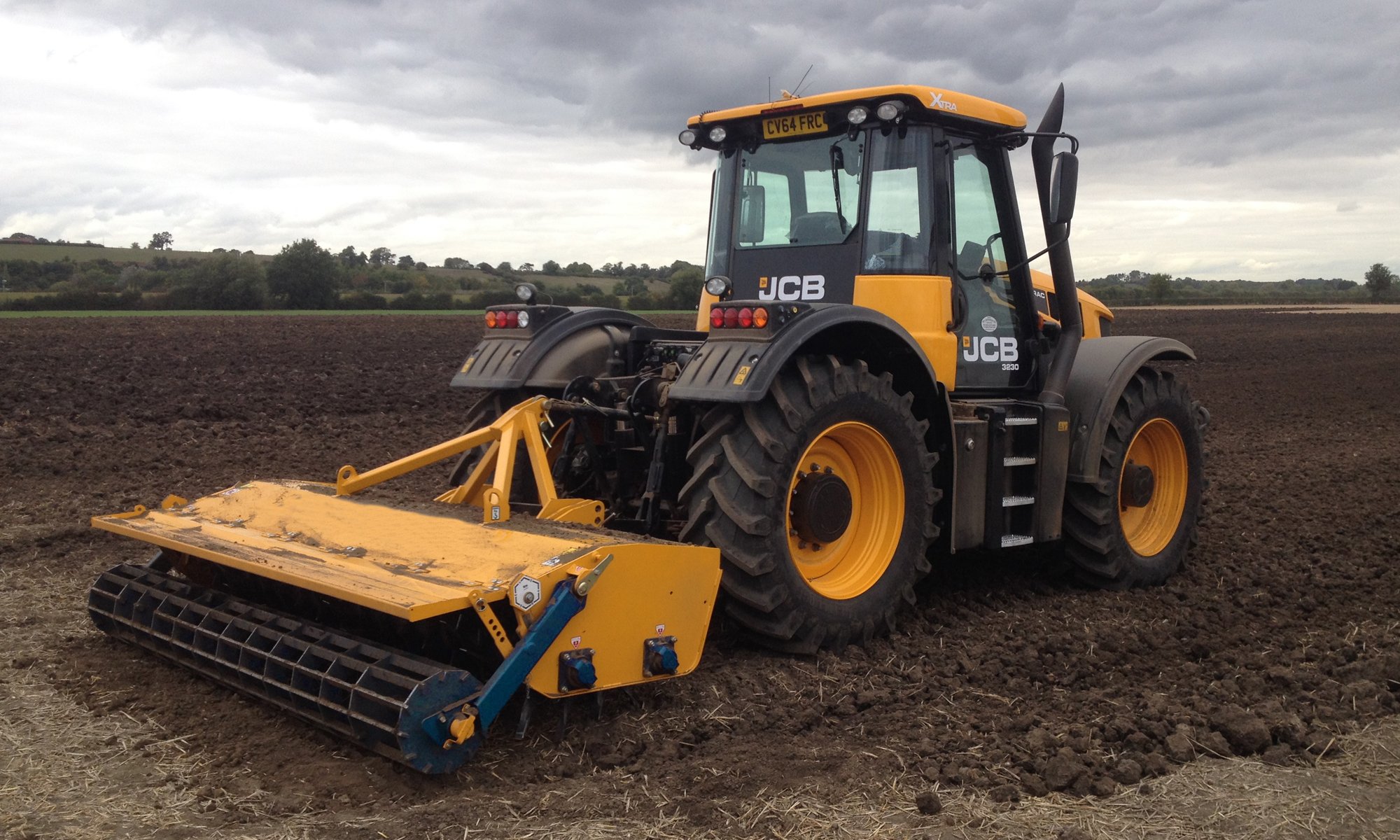

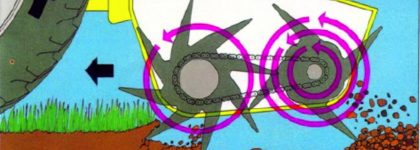

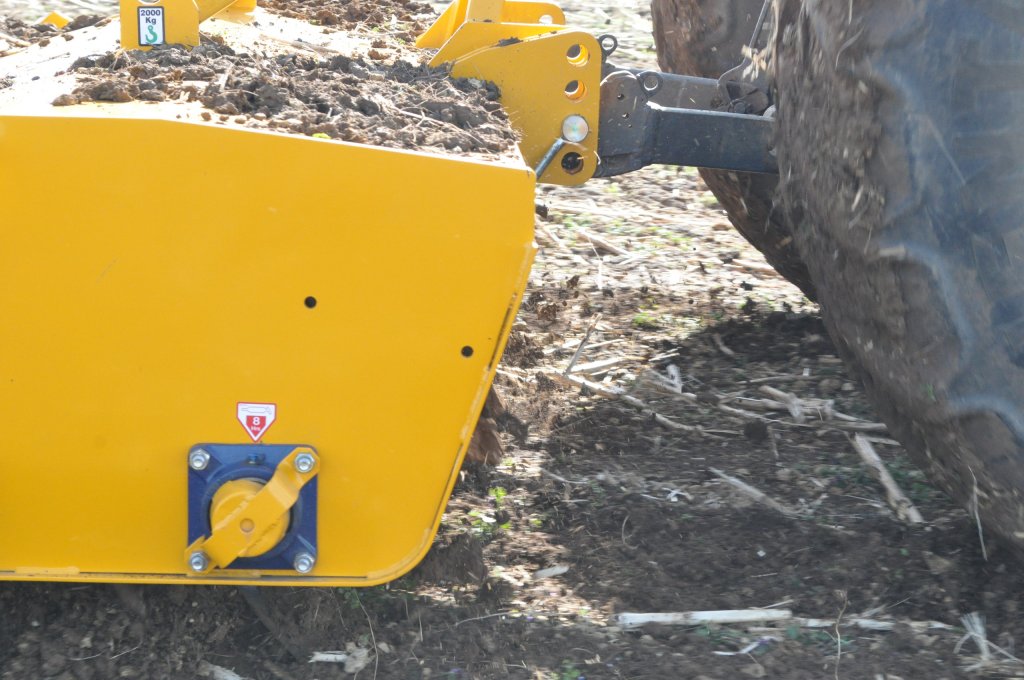

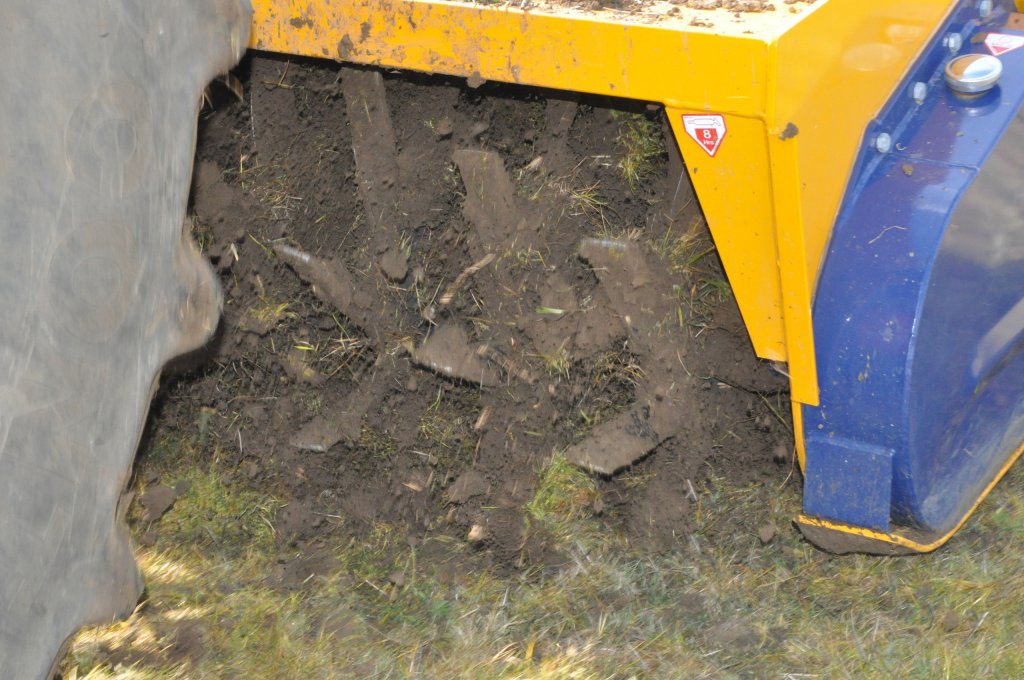

Simple and effective ground driven cultivator, for use on all types of soil at high speed.

Designed in conjunction with the NIAE, the Dyna-Drive enables successive cereal crops to be sown at reduced costs and in faster times than with traditional methods of cultivation.

Key Features

  • 1.6, 2.0, 2.6, 3.0, 4.0 or 5.0m widths
  • 4.0 and 6.0m Flex options also available

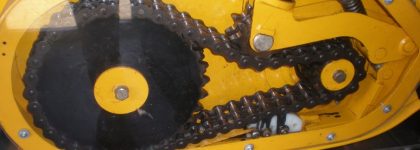

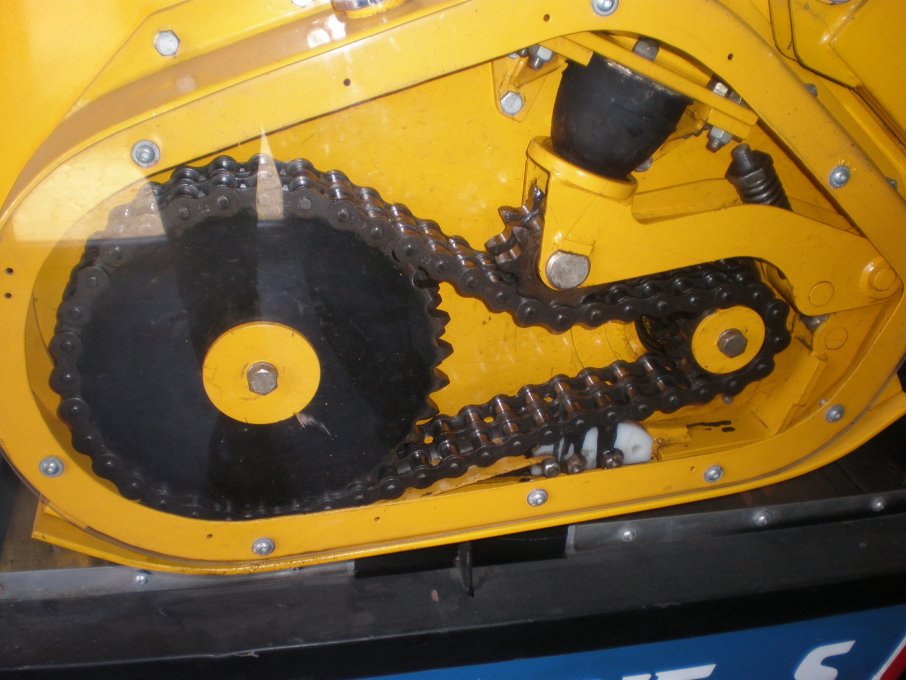

  • Maintenance free drive system
  • Breaks up stubble, breaks down ploughing
  • No PTO required

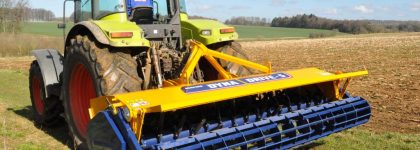

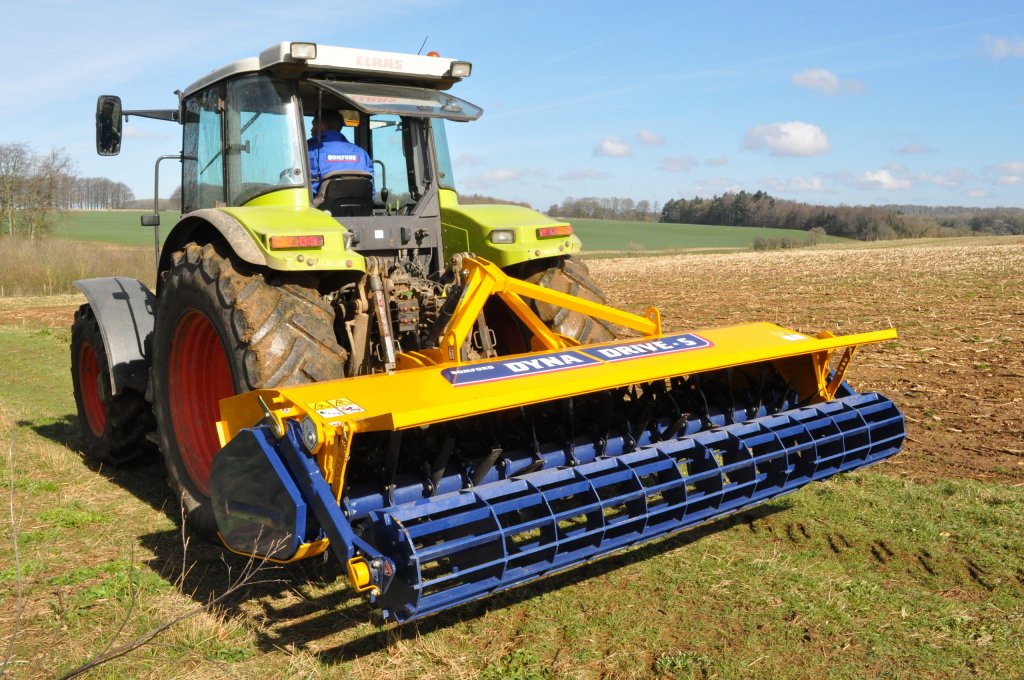

  • Crumbler or Packer roller options

Product Specification

Model 1.6m 2.0m 2.6m 3.0m 4.0m 5.0m
Working Width 1.6m / 5’3″ 2.0m / 6’7″ 2.6m / 8’6″ 3.0m / 9’10”  4.0m / 13’1″  5.0m / 16’5″
Transport Width 2.0m / 6’7″ 2.4m / 7’11” 3.0m / 9’10” 3.4m / 11’2″  4.4m / 14’5″  5.4m / 17’8″
Tractor Power Required 37-52 kW 50-70 bhp 45-70 kW 60-90 bhp 60-90 kW 80-120 bhp 100 kW 90-130 bhp  140 kW 130-180 bhp  180 kW 160-240 bhp
Output Guide 7.5 mph (12kph) 2.0 ha/hr 4.94 ac/hr 2.42 ha/hr 6.05 ac/hr 3.13 ha/hr 7.82 ac/hr 3.60 ha/hr 9.00 ac/hr  4.80 ha/hr 12.00 ac/hr 6.00 ha/hr 16.00 ac/hr
Weight Including Crumbler
1050kg / 2315lbs 1040kg / 2293lbs 1320kg / 2911lbs 1480kg / 3263lbs 2080kg / 4586lbs 2620kg / 5777lbs
Number of cleaner Tines Required 104 124   160 184  244  304
Roller Options Available Crumbler
Packer
Crumbler
Packer
Crumbler
Packer
Crumbler
Packer
Crumbler
Packer
Crumbler
Packer

Flex Specification

Model Flex 4.0m Flex 6.0m
Working Width 4.0m / 13’1″ 6.0m / 19’8″
Transport Width 2.5m / 8’2″ 2.5m / 8’2″
Tractor Power Required 195 kW
220-260 bhp
220 kW
250-300 bhp
Output Guide 7.5 mph (12kph) 4.80 ha/hr
12.00 ac/hr
7.20 ha/hr
20.00 ac/hr
Weight Including Crumbler
3500 kg / 7716 lb 3950 kg / 8708 lb
Number of cleaner Tines Required 248 294
Roller Options Available Crumbler
Packer
Crumbler
Packer
