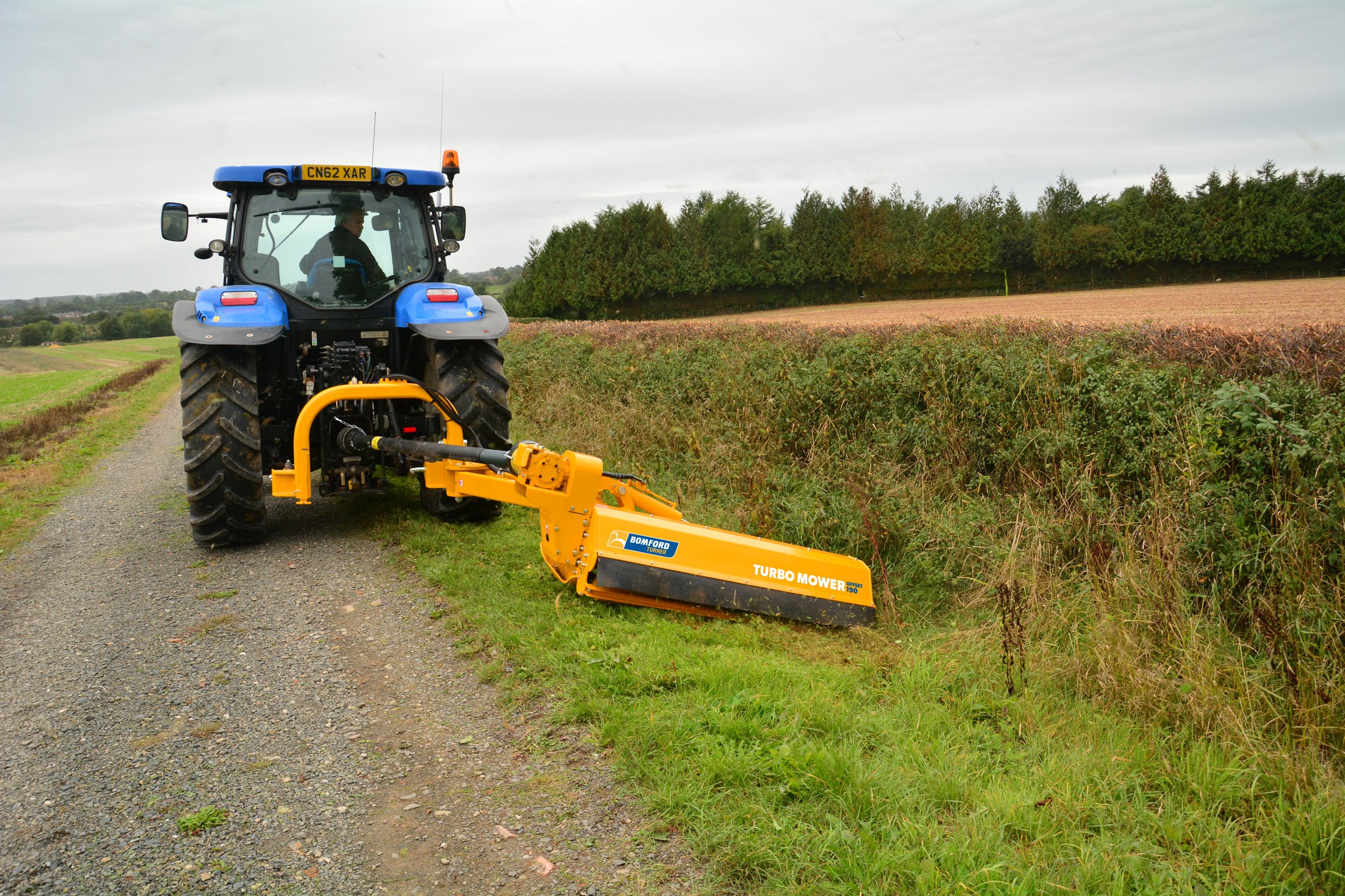

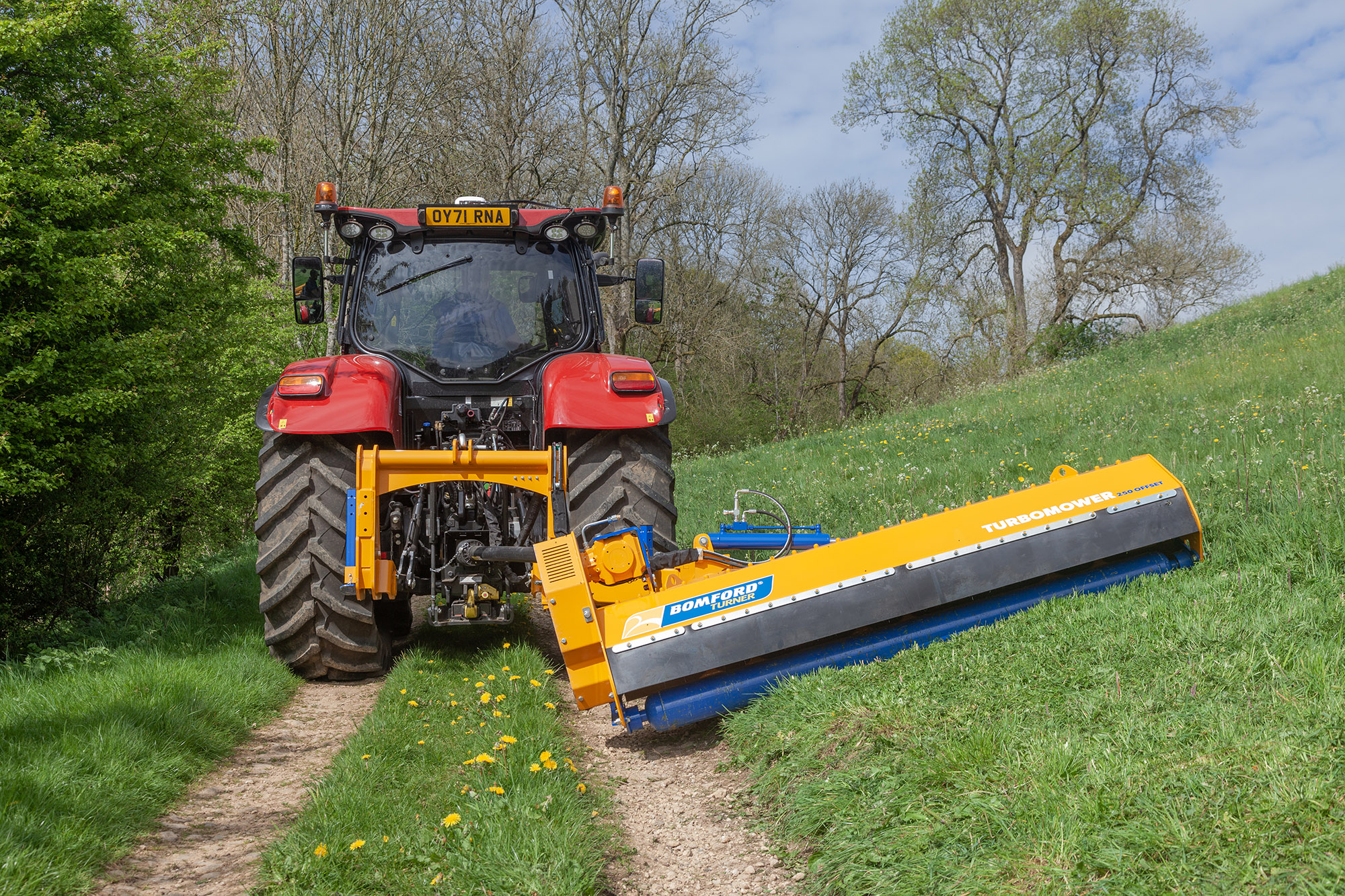

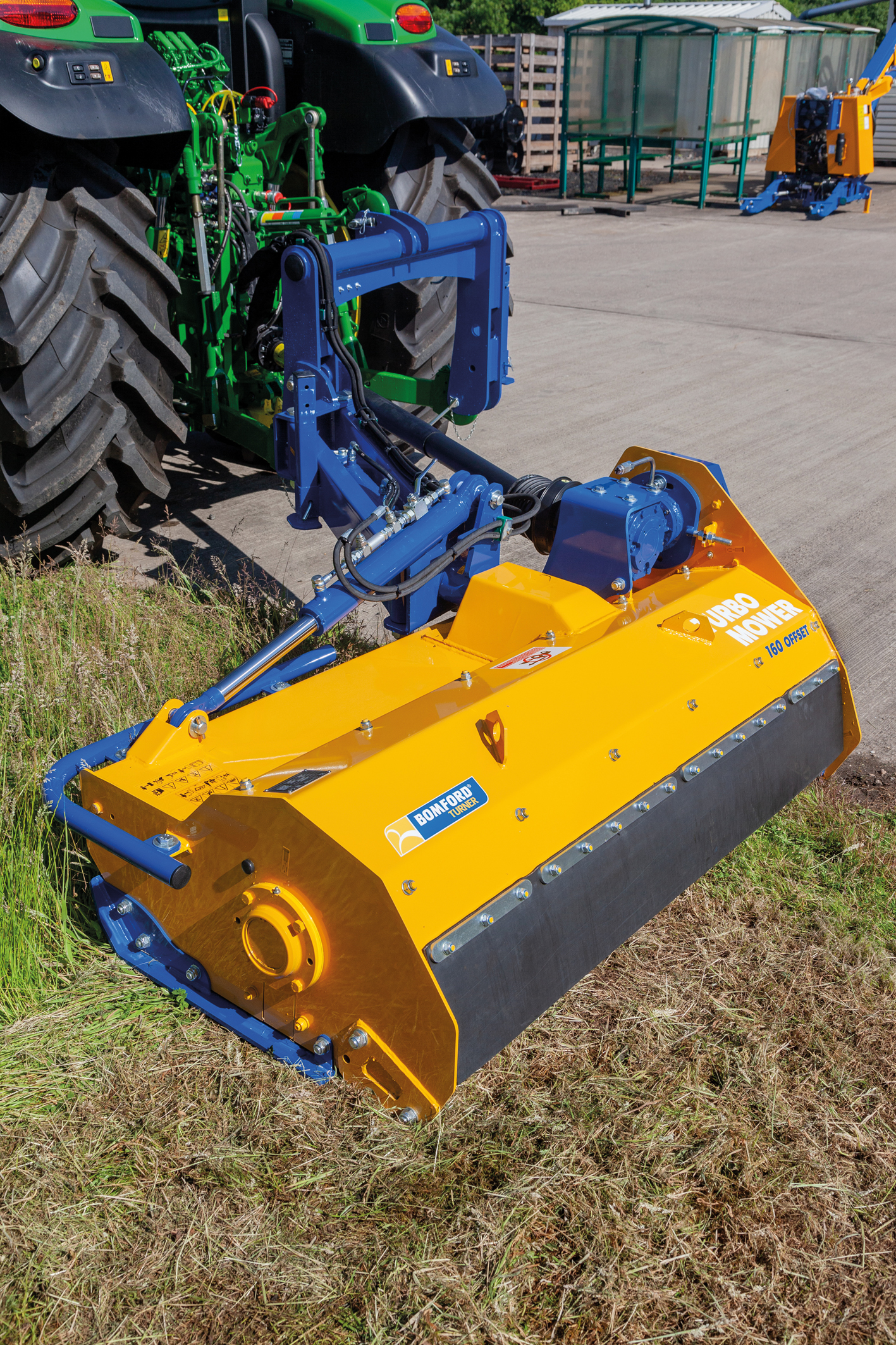

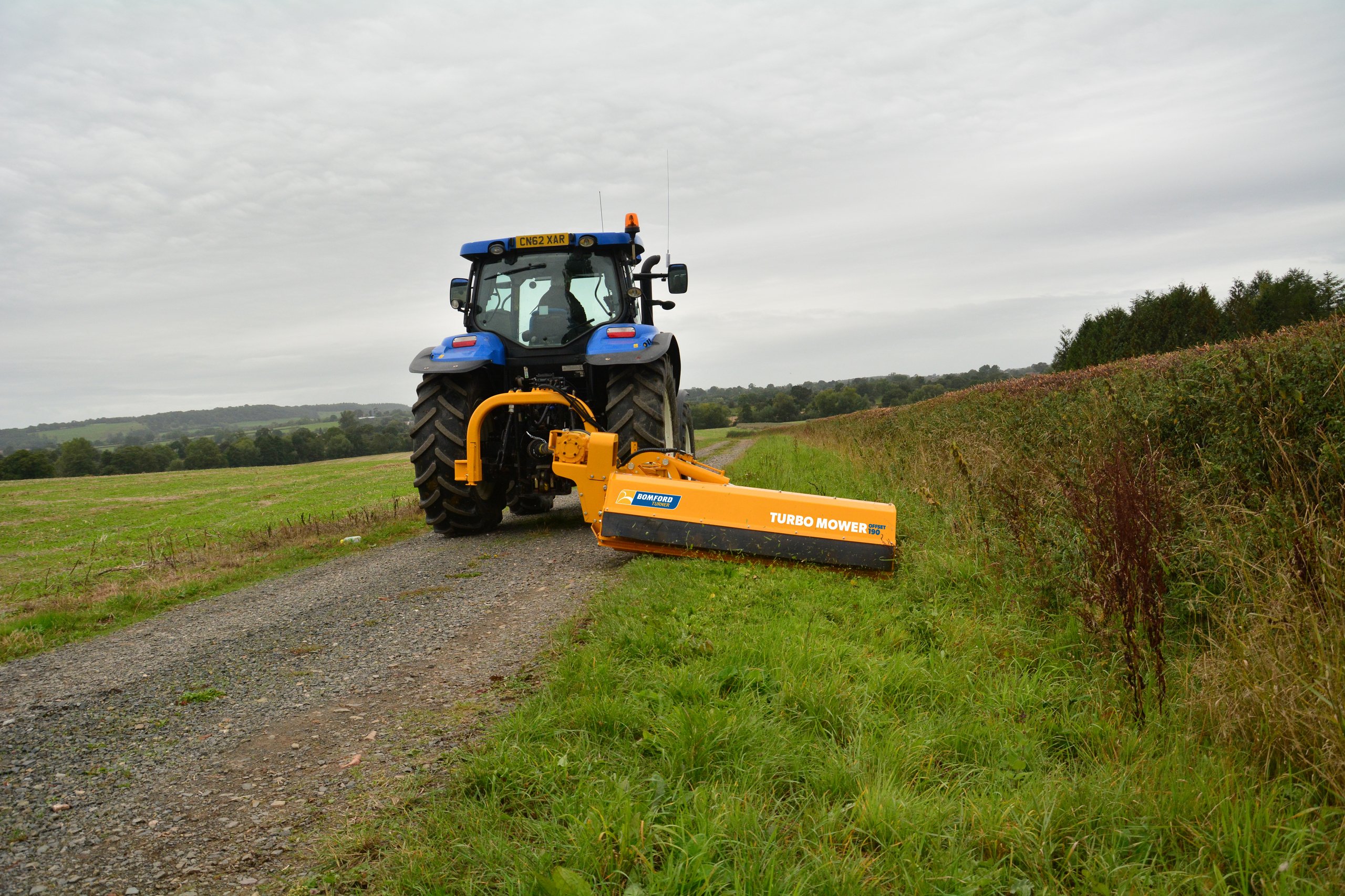

Turbo Mower Offset

The Turbo Mower Offset range offers operators a choice of cutting widths at cost effective prices.

A well designed and constructed range, the Turbo Mower Offset is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.

Key Features

1.6m, 2.2m and 2.5m cutting widths

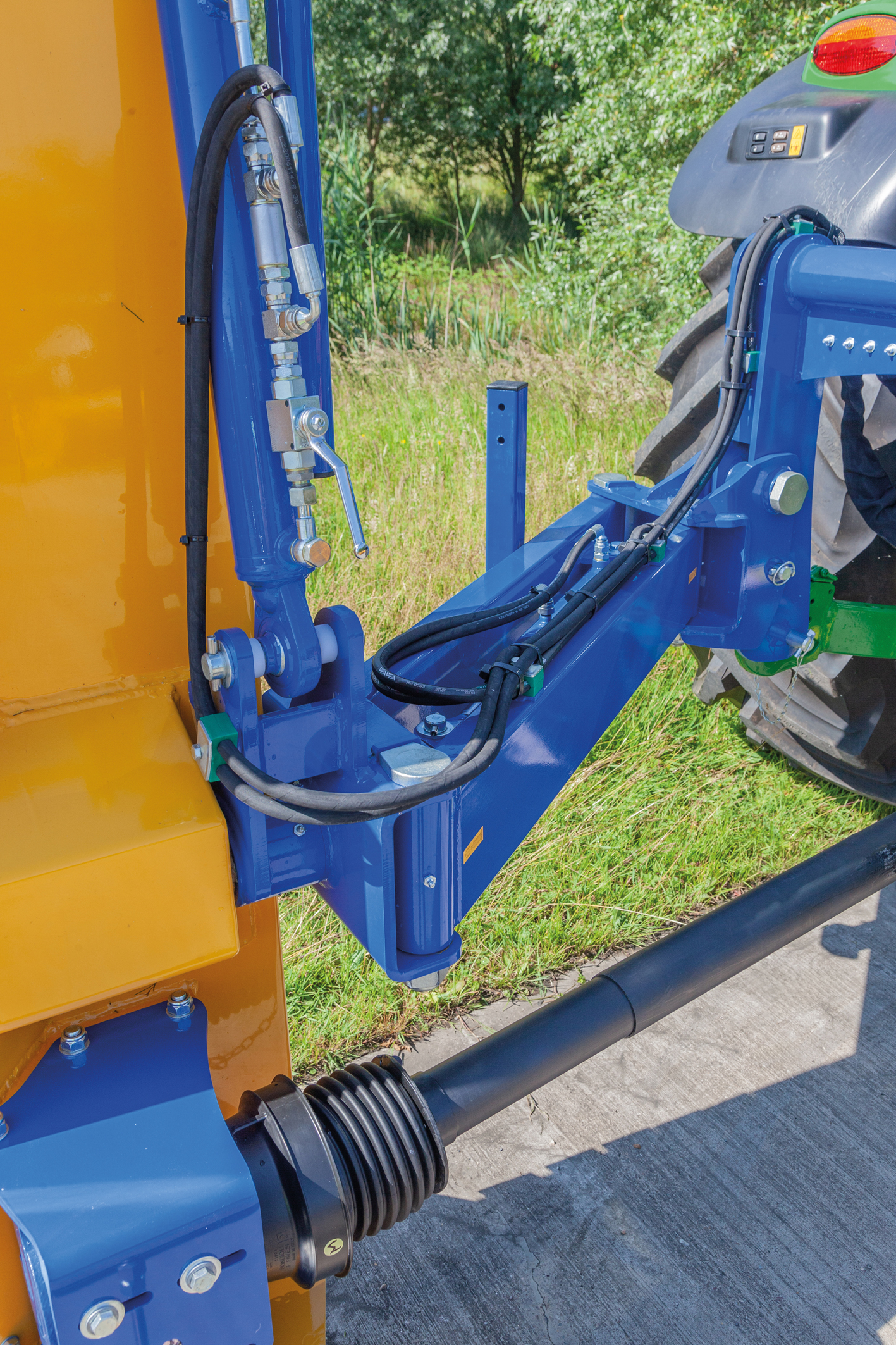

Three point linkage mounting
Left or right hand cutting options available

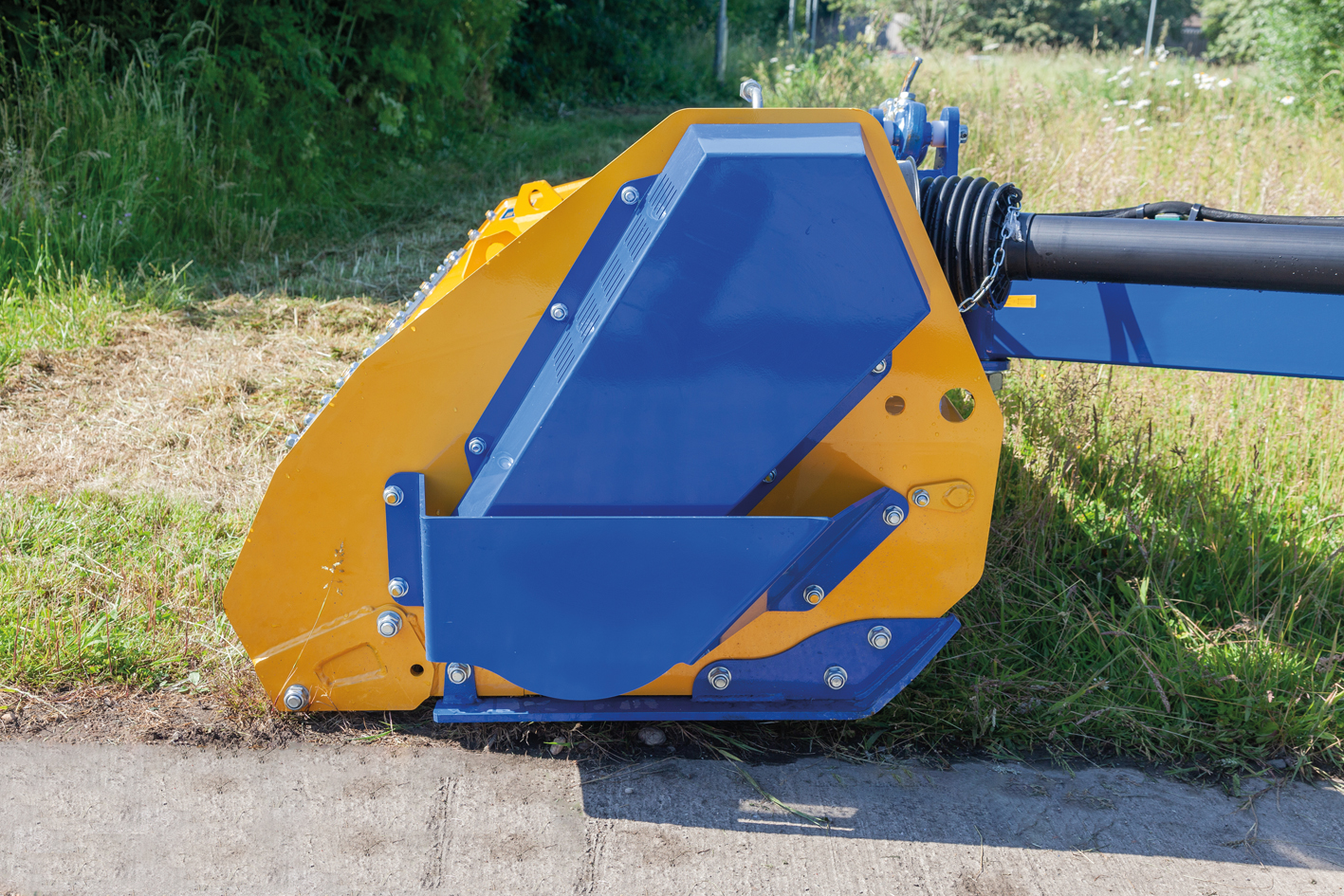

PTO overrun protection, safety breakaway and double-skin protection

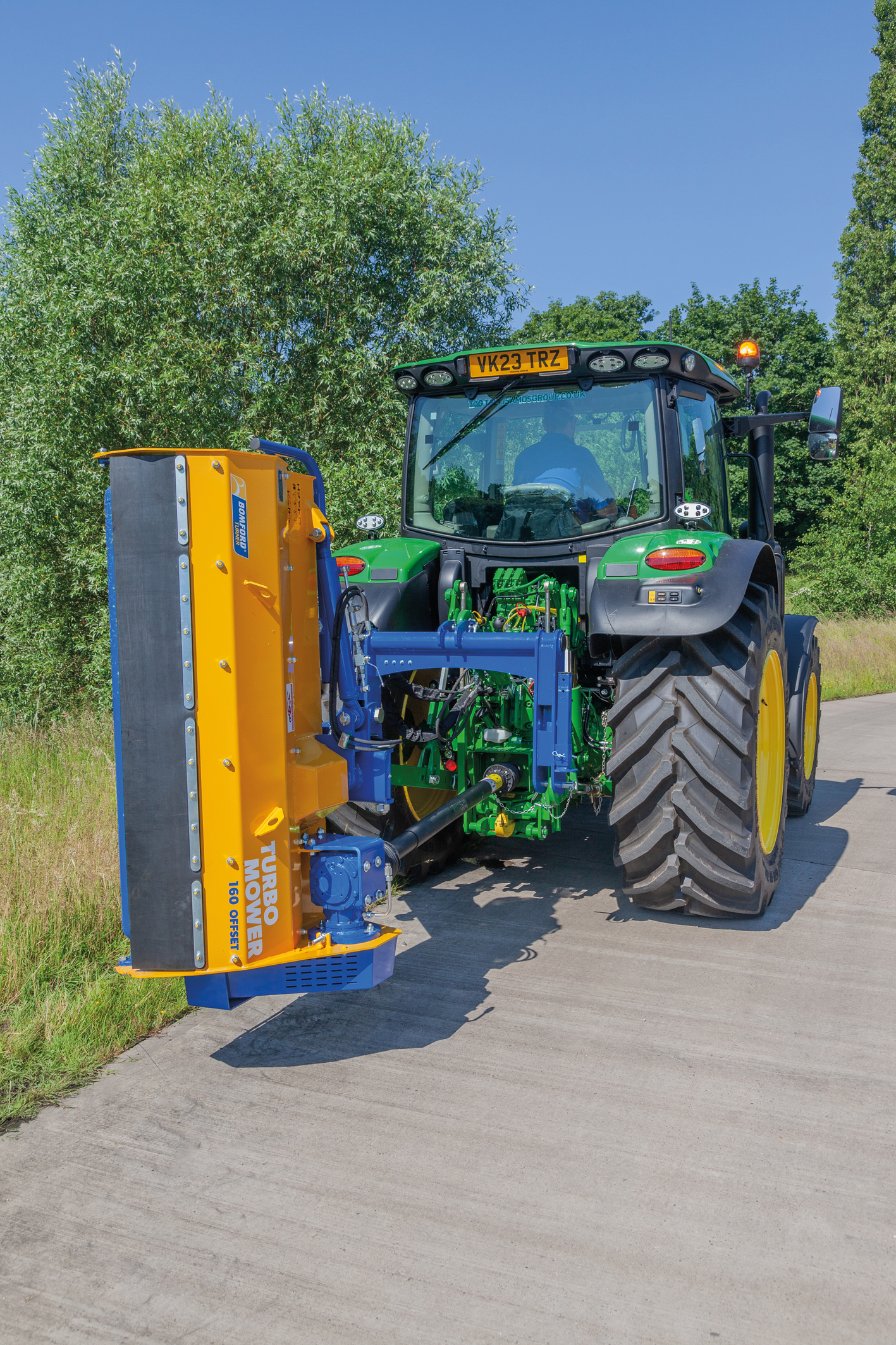

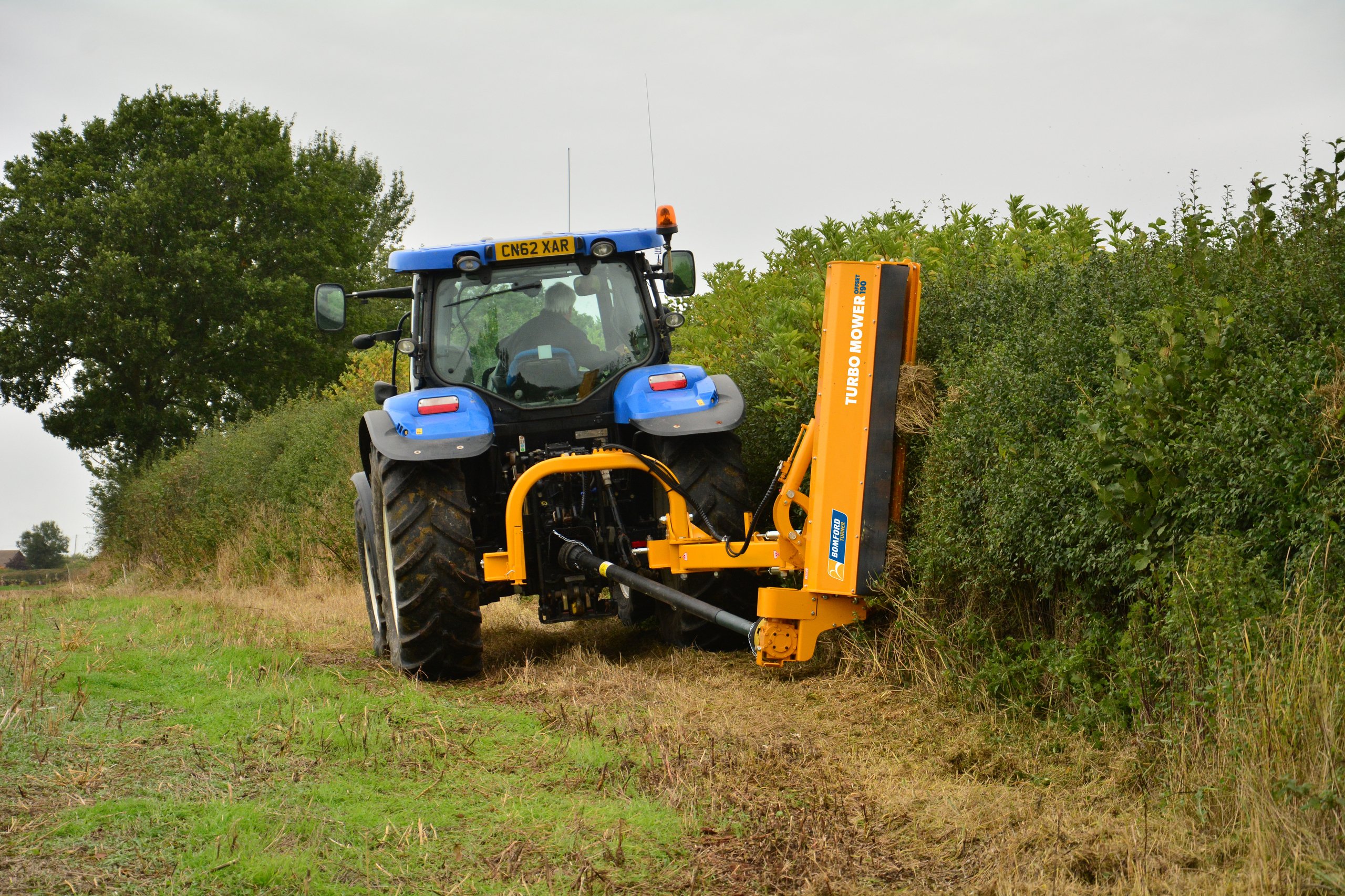

132 degrees of head movement
Vertical and horizontal hydraulic adjustment
Fuel-efficient, high-performance double spiral rotor
Cutting height of 30mm – 80mm
Maximum cutting diameter of 50mm

Product Specification

Standard = Standard Optional = Optional Not Available = Not Available

Models	160	200	220	220HD	250HD
Working Width	1.6m / 5’3”	2.0m / 6’6”	2.2m / 7’2”	2.2m / 7’2”	2.5m / 8’2”
Weight	610kg / 1345lbs	670kg / 1477lbs	710kg / 1565lbs	1060kg / 2310lbs	1260kg / 2779lbs
Front Protection	Steel Flap	Steel Flap	Steel Flap	Steel Flap	Steel Flap
Rear Protection	Rubber Flap	Rubber Flap	Rubber Flap	Rubber Flap	Rubber Flap
Linkage	Cat 11	Cat 11	Cat 11	Cat 11/111	Cat11/111
PTO Speed (rpm)	540	540	540	540
No of Belts	3	3	3	4	5
Front Mount	Not Available	Not Available	Not Available	Not Available	Not Available
No of Flails (Whale Tail)	20	30	34	22	24
Width of Flails	110mm / 4⁵/₁₆	110mm / 4⁵/₁₆	110mm / 4⁵/₁₆	110mm / 4⁵/₁₆	135mm / 5⁵/₁₆
Power Requirements (min)	50hp	55hp	60hp	90hp	95hp
Cutting Height	30-80mm / 1³/₁₆” – 3¹/₈”	30-80mm / 1³/₁₆” – 3¹/₈”	30-80mm / 1³/₁₆” – 3¹/₈”	30-80mm / 1³/₁₆” – 3¹/₈”	30-80mm / 1³/₁₆” – 3¹/₈”
Roller Size	140mm / 5½”	140mm / 5½”	140mm / 5½”	170mm / 6¹¹/₁₆”	170mm / 6¹¹/₁₆”

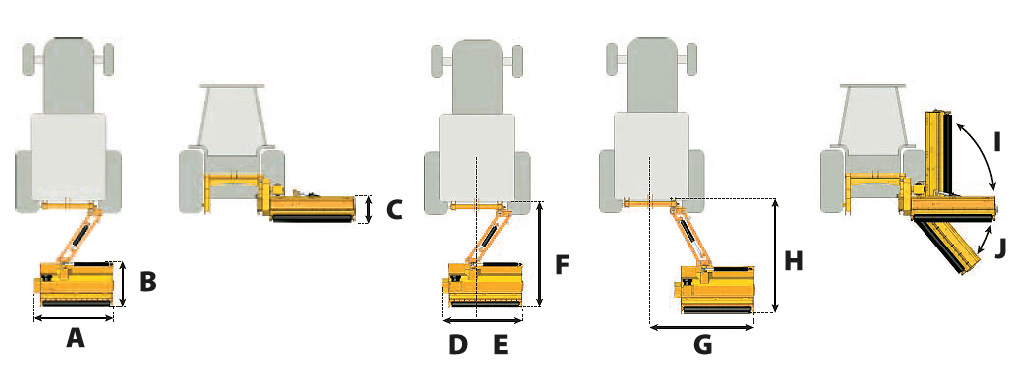

Dimensions and Working Reach

TurboMowerOffset-diagram

	160		200		220
A	1.82m	6′	2.0m	6’6″	2.44m	7’9″
B	0.9m	3′	0.9m	3′	0.9m	3′
C	0.4m	1’3″	0.4m	1’3″	0.4m	1’3″
D	0.7m	2’3″	0.7m	2’3″	0.7m	2’3″
E	1.1m	3’3″	1.5m	4’9″	1.9m	6’2″
F	2.03m	6’6″	2.03m	6’6″	2.03m	6’6″
G	2.3m	7’5″	2.7m	8’8″	2.9m	9’5″
H	2.06m	6’7″	2.06m	6’7″	2.06m	6’7″
I	+90°		+90°		+90°
J	-42°		-42°		-42°

	220HD		250HD
A	2.44m	7’9″	2.74m	9′
B	1.07m	3’5″	1.07m	3’5″
C	0.5m	1’6″	0.5m	1’6″
D	0.4m	1’3″	0.4m	1’3″
E	2.06m	6’8″	2.36m	7’7″
F	2.5m	8’2″	2.5m	8’2″
G	3.07m	10′	3.37m	11′
H	2.26m	7’4″	2.26m	7’4″
I	+90°		+90°
J	-42°		-42°

Still need help or advice? Why not contact one of our team
