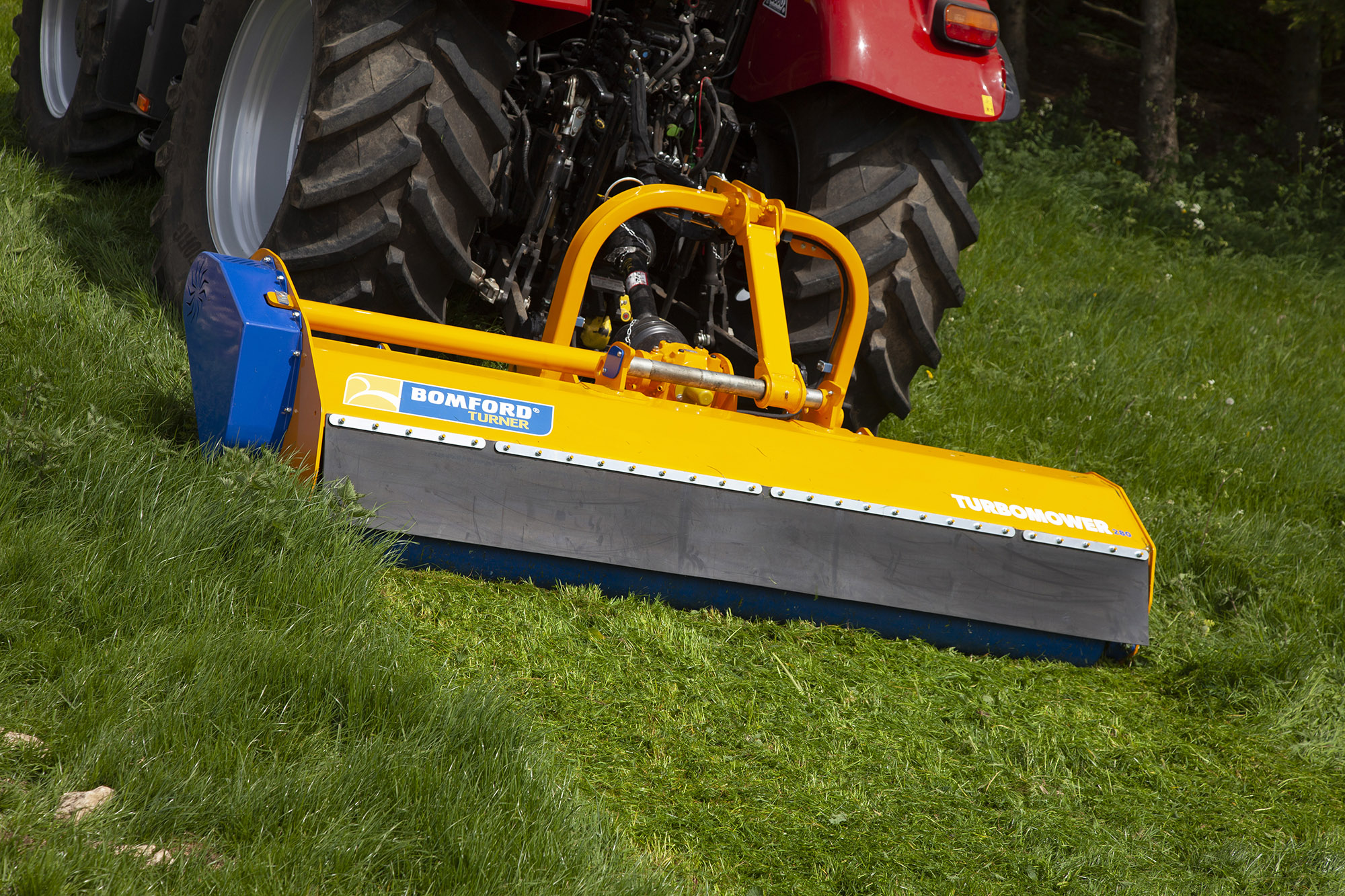

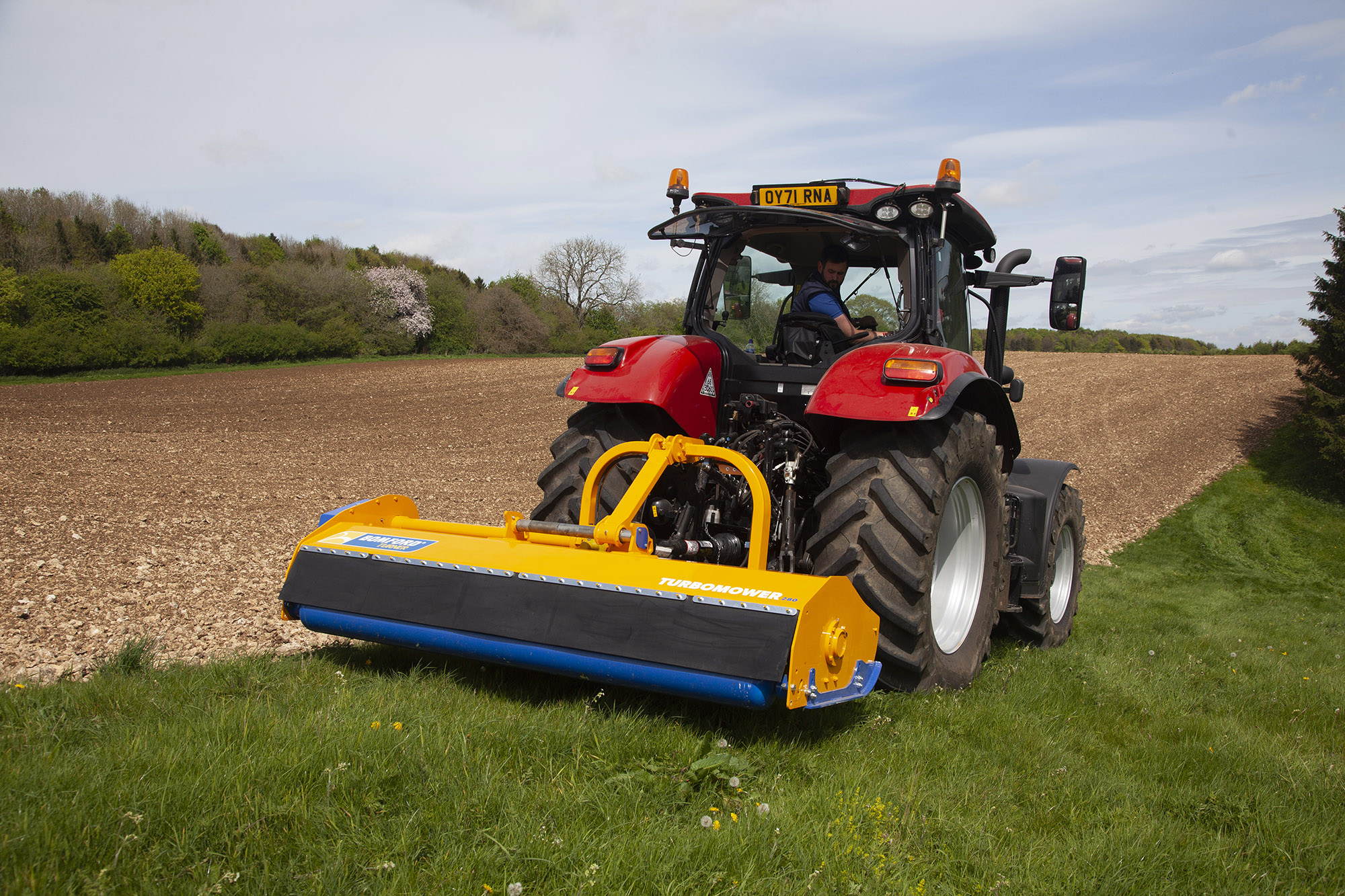

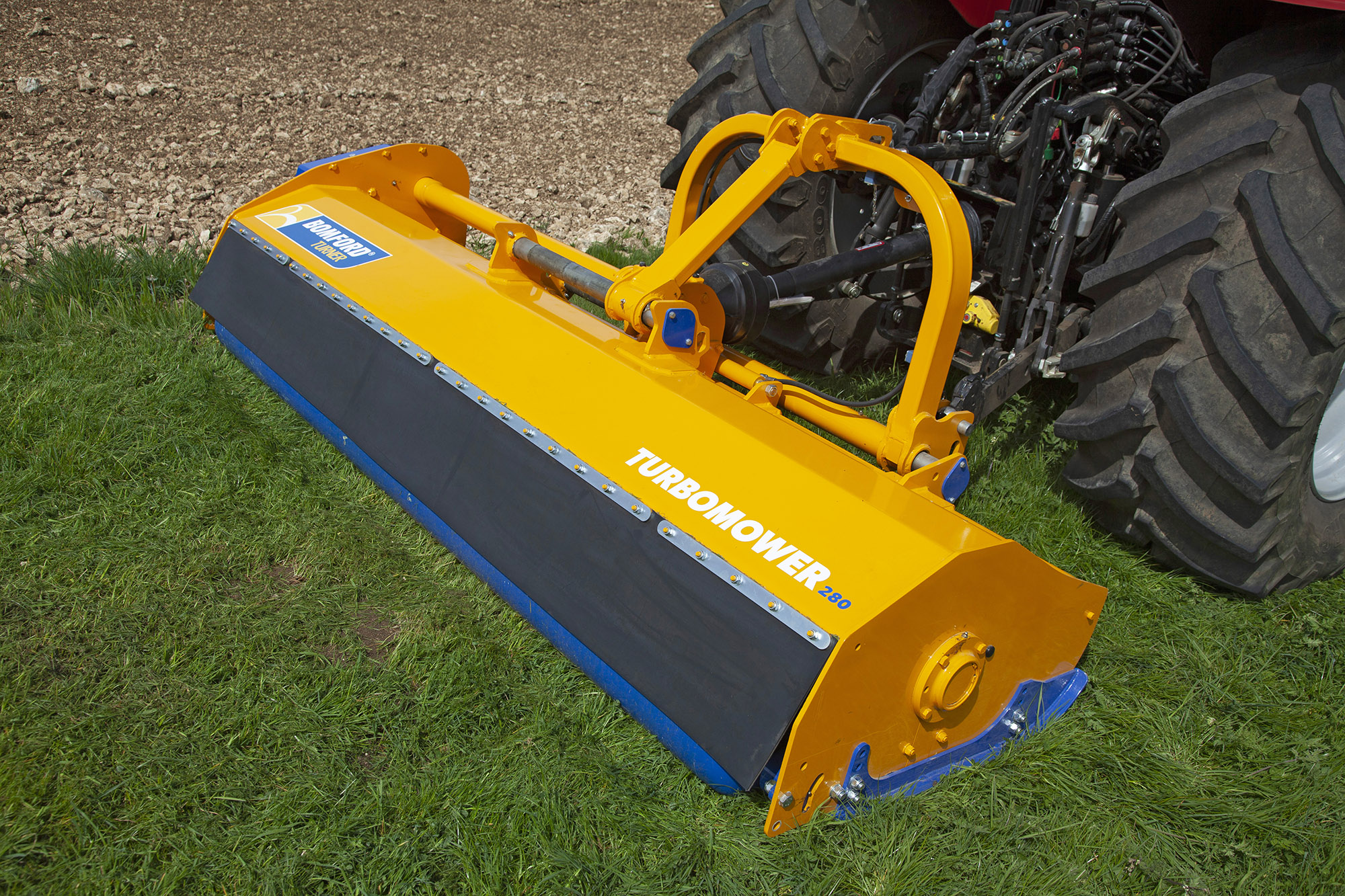

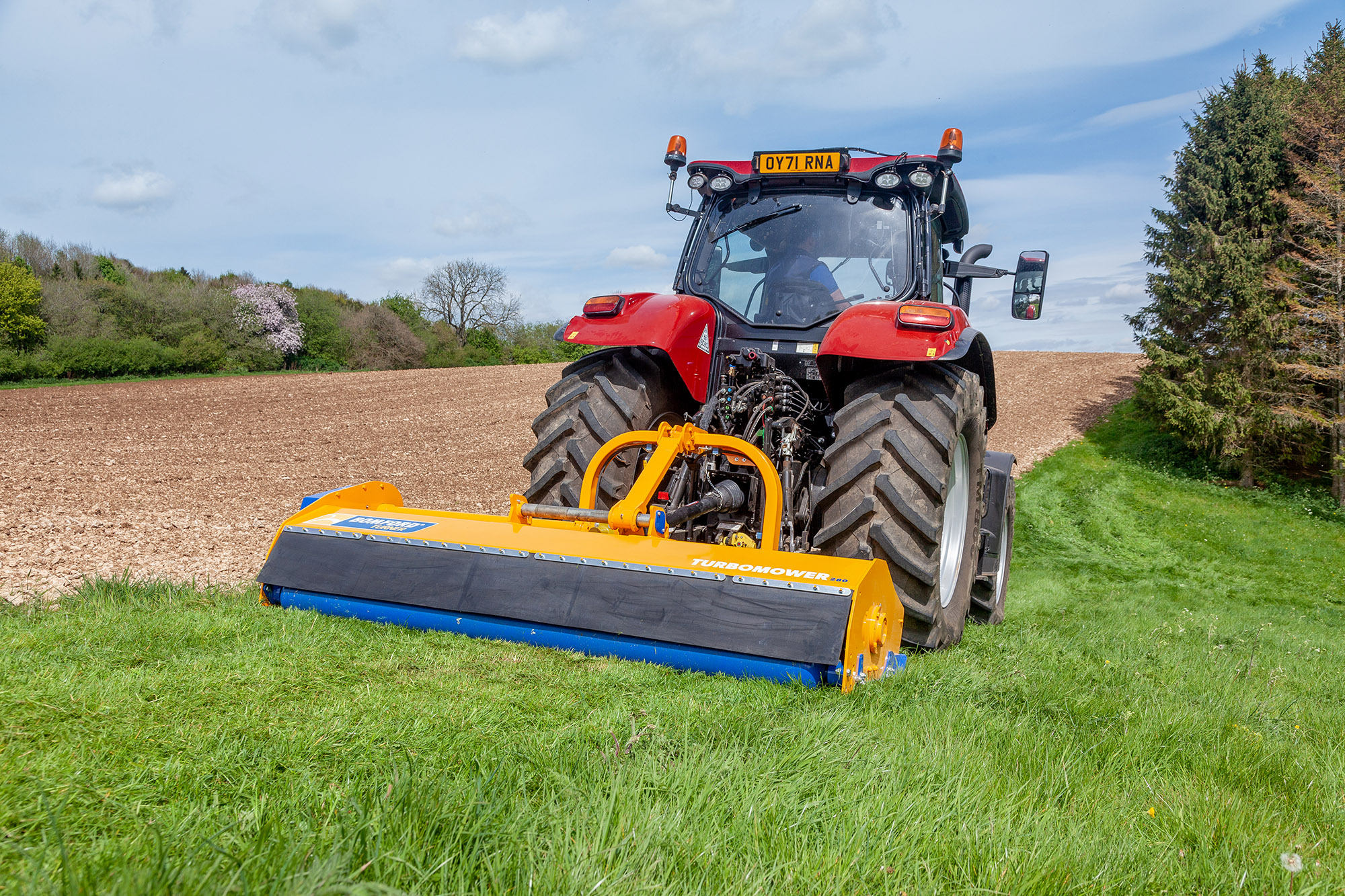

A well designed and constructed range, the Turbo Mower is built with durability and ease-of-use in mind – a low maintenance machine that is simple to operate.
Key Features
- Choice of cutting widths available
- Front mount options
- Hydraulic offset standard on all models
- Standard fitted roller and side skids
- Cat 11 three point linkage mounted
- Over run clutch protected
Product Specification
Elite
| Models |
Elite 130 Compact |
Elite 150 Compact |
Elite 180 Compact |
Elite 200 |
Elite 220 |
Elite 250 |
Elite 280 |
| Working Width |
1.3m / 4’3″ |
1.5m / 4’9″ |
1.8m / 5’9″ |
2.0m / 6’6″ |
2.2m / 7’2″ |
2.5m / 8’2″ |
2.8m / 9’2″ |
| Overall Width |
1.45m / 4’9″ |
1.65m / 5’5″ |
1.985m / 6’5″ |
2.2m / 7’2″ |
2.4m / 7’9″ |
2.7m / 8’9″ |
3.02m / 9’9″ |
| Weight |
250kg / 551lbs |
290kg / 639lbs |
390kg / 860lbs |
655kgs / 1444lbs |
705kg / 1554lbs |
790kg / 1742lbs |
1080kg / 2381lbs |
| Hydraulic Offset |
Optional |
Optional |
Standard |
Standard |
Standard |
Standard |
Standard |
| Hydraulic Offset |
400mm / 153/4” |
400mm / 153/4” |
400mm / 153/4” |
400mm / 153/4” |
400mm / 153/4” |
400mm / 153/4” |
400mm / 153/4” |
| Front Protection |
Steel Flap |
Steel Flap |
Steel Flap |
Steel Flap |
Steel Flap |
Steel Flap |
Chains |
| Rear Protection |
Rubber Flap |
Rubber Flap |
Rubber Flap |
Rubber Flap |
Rubber Flap |
Rubber Flap |
Rubber Flap |
| Linkage |
Cat1 |
Cat1 |
Cat1/11 |
Cat11 |
Cat11 |
Cat11 |
Cat11 |
| PTO speed (rpm) |
540 |
540 |
540 |
540 |
540 |
540 |
1000 |
| Number of Belts |
2 |
2 |
3 |
4 |
4 |
4 |
5 |
| Mulching Bars |
Not Available |
Not Available |
Standard |
Standard |
Standard |
Standard |
Standard |
| Front mount |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| No. of Flails (Whale Tail) |
15 |
18 |
24 |
22 |
22 |
24 |
24 |
| Width of Flails (Whale Tail) |
80mm / 33/8“ |
80mm / 33/8“ |
85mm / 33/8“ |
135mm / 55/16“ |
135mm / 55/16“ |
135mm / 55/16“ |
135mm / 55/16“ |
| Opening Rear Hood |
Not Available |
Not Available |
Standard |
Standard |
Standard |
Standard |
Not Available |
| Power requirements (min) |
25 hp |
25 hp |
45-60 hp |
55-75 hp |
65-90 hp |
75-100 hp |
85-110 hp |
| Cutting height |
32-111mm / 1¼” – 43/8“ |
32-111mm / 1¼” – 43/8“ |
30-60mm / 13/16” – 23/8</sub" |
30-60mm / 13/16” – 23/8</sub" |
30-60mm / 13/16” – 23/8</sub" |
30-60mm / 13/16” – 23/8</sub" |
30-60mm / 13/16” – 23/8</sub" |
| Roller size |
140mm / 5½” |
140mm / 5½” |
140mm / 5½” |
170mm / 611/16“ |
170mm / 611/16“ |
170mm / 611/16“ |
220mm / 811/16“ |
Euro
| Models |
Euro 250 |
Euro 280 |
| Working Width |
2.5m / 8’2″ |
2.8m / 9’2″ |
| Overall Width |
2.7m / 8’9″ |
3.05m / 10′ |
| Weight |
1140kg / 2513lbs |
1160kg / 2557lbs |
| Hydraulic Offset |
Standard |
Standard |
| Hydraulic Offset |
500mm / 1911/16” |
500mm / 1911/16” |
| Front Protection |
Steel Flap |
Steel Flap |
| Rear Protection |
Rubber Flap |
Rubber Flap |
| Linkage |
Cat 11 |
Cat 11 |
| PTO speed (rpm) |
1000 |
1000 |
| Number of Belts |
6 |
6 |
| Mulching Bars |
Standard |
Standard |
| Front mount |
Standard |
Standard |
| No. of Flails (Whale Tail) |
28 |
32 |
| Width of Flails (Whale Tail) |
100mm / 315/16” |
100mm / 315/16” |
| Opening Rear Hood |
Not Available |
Not Available |
| Power requirements (min) |
45-60 hp |
55-75 hp |
| Cutting height |
45mm / 1¾” |
45mm / 1¾” |
| Roller size |
170mm / 611/16” |
170mm / 611/16” |
Turbo Pro
| Models |
Turbo Pro 250 |
Turbo Pro 280 |
Turbo Pro 300 |
| Working Width |
2.5m / 8’2″ |
2.8m / 9’2″ |
3.0m / 9’9″ |
| Overall Width |
2.7m / 8’9″ |
3.05m / 10′ |
3.2m / 10’5″ |
| Weight |
1220kg / 2689lbs |
1330kg / 2932lbs |
1430kg / 3153lbs |
| Hydraulic Offset |
Standard |
Standard |
Standard |
| Hydraulic Offset |
500mm / 1911/16” |
500mm / 1911/16” |
500mm / 1911/16” |
| Front Protection |
Chains |
Chains |
Chains |
| Rear Protection |
Rubber Flap |
Rubber Flap |
Rubber Flap |
| Linkage |
Cat 11 / 111 |
Cat 11 / 111 |
Cat 11 / 111 |
| PTO speed (rpm) |
1000 |
1000 |
1000 |
| Number of Belts |
6 |
6 |
6 |
| Mulching Bars |
Standard |
Standard |
Standard |
| Front mount |
Standard |
Standard |
Standard |
| No. of Flails (Whale Tail) |
28 |
32 |
36 |
| Width of Flails (Whale Tail) |
100mm / 315/16” |
100mm / 315/16” |
100mm / 315/16” |
| Opening Rear Hood |
Standard |
Standard |
Standard |
| Power requirements (min) |
60-90 hp |
65-90 hp |
75-100 hp |
| Cutting height |
45mm / 1¾” |
45mm / 1¾” |
45mm / 1¾” |
| Roller size |
220mm / 811/16” |
220mm / 811/16” |
220mm / 811/16” |
