Flailbot Supreme Stage V / T4 Final

The flagship model – enjoy ultimate horse power with the 75hp engine giving maximum power and control to the operators finger tips.

Product Specifications

Standard = Standard Optional = Optional Not Available = Not Available / Not Applicable

Model	Supreme Stage V / T4 Final (75hp)
Operation
Max Slope	55°
Transmission	Hydrostatic
Speed	0-7 km/h
Weight	2200kg / 4,850 lbs
Engine
Brand / Make	Perkins
Model	4 Cyclinders, Diesel, Direct Injection
Engine Size	2.2 Litres / 134.2 in³
Power	55 kW / 75 Cv
Max Torque	270 Nm / 199 ft-lb @ 1800 rpm
Intake	Turbocharged aftercooled
Cooling	Liquid
Air Filter	Dry
Diesel Tank Capacity	39 Litres / 10.3 USG
Engine Oil Capacity	10 Litres / 2.6 USG
Electrical Circuit
Operating Voltage	12 Vcc
Alternator	85 Amp
Battery	70 Ah
Hydraulic System
Displacement	Tandem piston pump with variable engine size and closed circuit
Displacement Capacity	154 Litres / 40.7 USG max @ 2750 rpm
Displacement Pressure	400 Bar max
Services	Gear Pump
Services Capacity	15 Litres / 4 USG max @ 2750 rpm
Services Pressure	200 Bar max
Tool	Closed Circuit Piston Pump
Tool Capacity	93 Litres / 24.6 USGmax @ 2750 rpm
Tool Pressure	380 Bar max
Oil Tank Capacity	72 Litres / 19 USG
Operating Oil Quantity	82 Litres / 22 USG
Controls
Brand	Scanreco
Frequency	2.4 GHz
Range Signal	150m / 492′
Battery	Rechargeable

Model

Supreme Stage V / T4 Final (75hp)

Operation

Max Slope

55°

Transmission

Hydrostatic

Speed

0-7 km/h

Weight

2200kg / 4,850 lbs

Engine

Brand / Make

Perkins

Model

4 Cyclinders, Diesel, Direct Injection

Engine Size

2.2 Litres / 134.2 in³

Power

55 kW / 75 Cv

Max Torque

270 Nm / 199 ft-lb @ 1800 rpm

Intake

Turbocharged aftercooled

Cooling

Liquid

Air Filter

Dry

Diesel Tank Capacity

39 Litres / 10.3 USG

Engine Oil Capacity

10 Litres / 2.6 USG

Electrical Circuit

Operating Voltage

12 Vcc

Alternator

85 Amp

Battery

70 Ah

Hydraulic System

Displacement

Tandem piston pump with variable engine size and closed circuit

Displacement Capacity

154 Litres / 40.7 USG max @ 2750 rpm

Displacement Pressure

400 Bar max

Services

Gear Pump

Services Capacity

15 Litres / 4 USG max @ 2750 rpm

Services Pressure

200 Bar max

Tool

Closed Circuit Piston Pump

Tool Capacity

93 Litres / 24.6 USGmax @ 2750 rpm

Tool Pressure

380 Bar max

Oil Tank Capacity

72 Litres / 19 USG

Operating Oil Quantity

82 Litres / 22 USG

Controls

Brand

Scanreco

Frequency

2.4 GHz

Range Signal

150m / 492′

Battery

Rechargeable

Working Dimensions & Weights

Engine Size / Capacity: 75hp / 2.2 Litres / 134.2 in³
Flailibot with Oil and Fuel: 2200kg / 4,850lbs
1650 Flailhead: 450kg / 992lbs
Remote Control Distance up to: 150m / 492′
Working angle up to: 55°

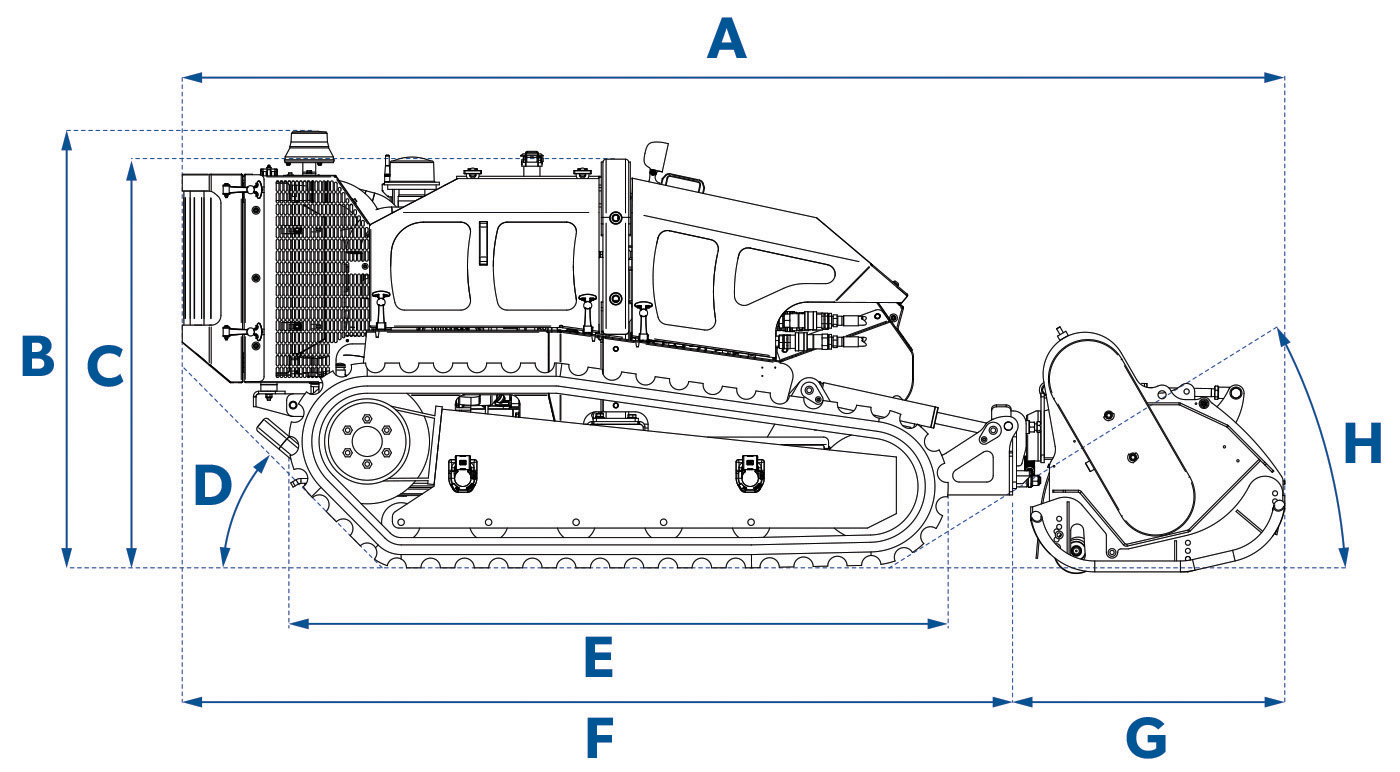

	Metric	Imperial
A	3415mm	134 ½”
B	1350mm	53 ¼”
C	1264mm	49 ¾”
D	45°	45°
E	2042mm	80 ¼”
F	2572mm	101 ¼”
G	843mm	33 ¼”
H	32°	32°

Metric

Imperial

3415mm

134 ½”

1350mm

53 ¼”

1264mm

49 ¾”

45°

2042mm

80 ¼”

2572mm

101 ¼”

843mm

33 ¼”

32°

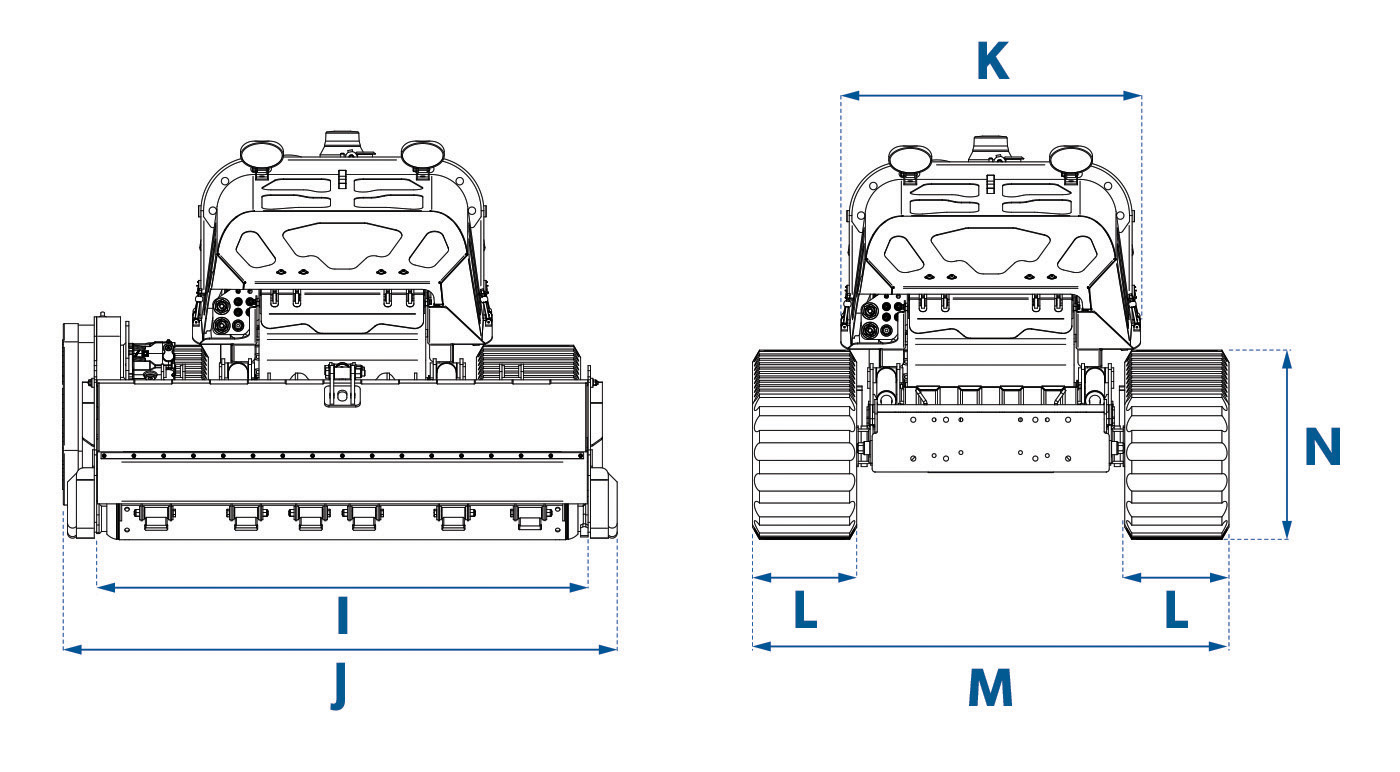

	Metric	Imperial
I	1650mm	65″
J	1860mm	73 ¼”
K	1000mm	39 ½”
L	350mm	13 ¾”
M	1600mm	63″

Metric

Imperial

1650mm

65″

1860mm

73 ¼”

1000mm

39 ½”

350mm

13 ¾”

1600mm

63″

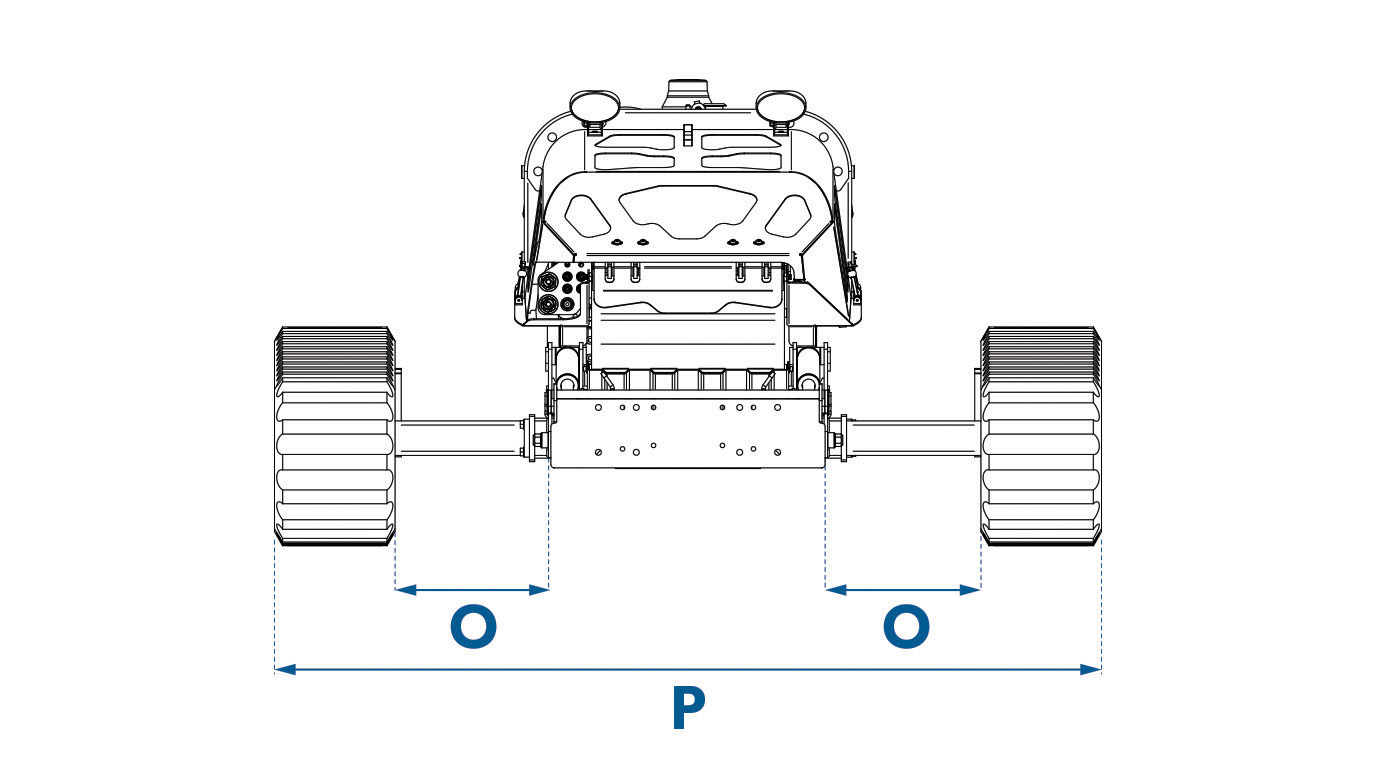

	Metric	Imperial
O	400mm	15 ¾”
P	2400mm	94 ½”

Metric

Imperial

400mm

15 ¾”

2400mm

94 ½”
