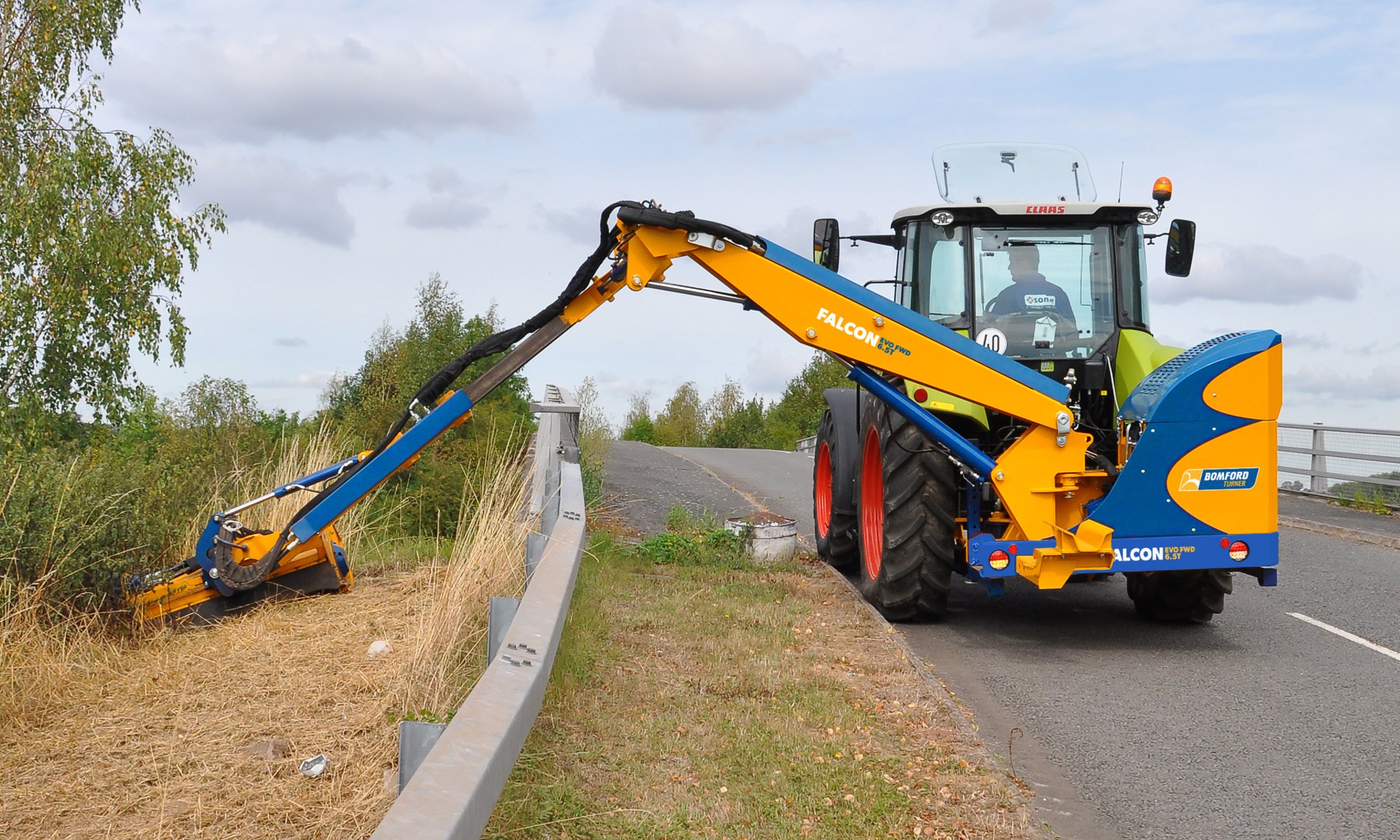

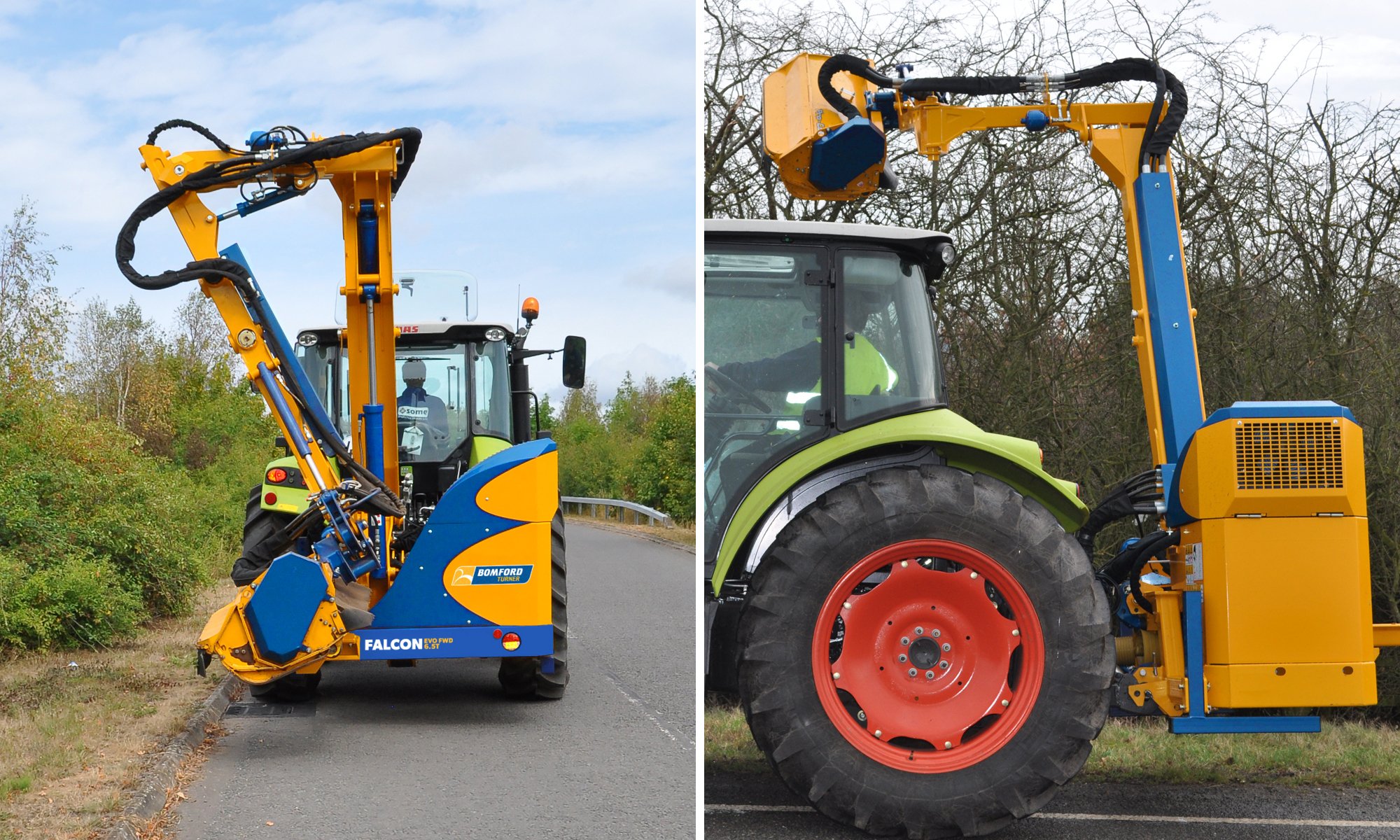

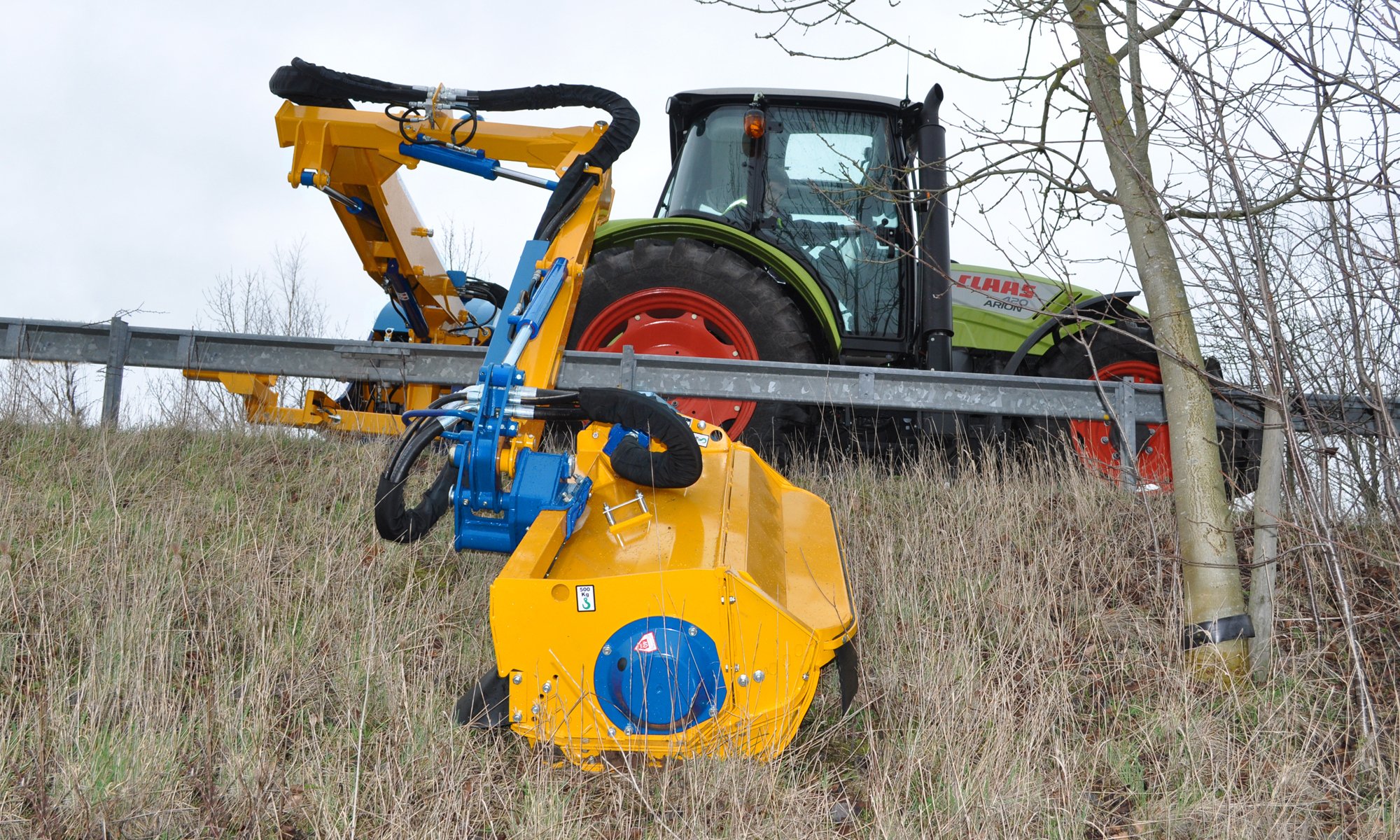

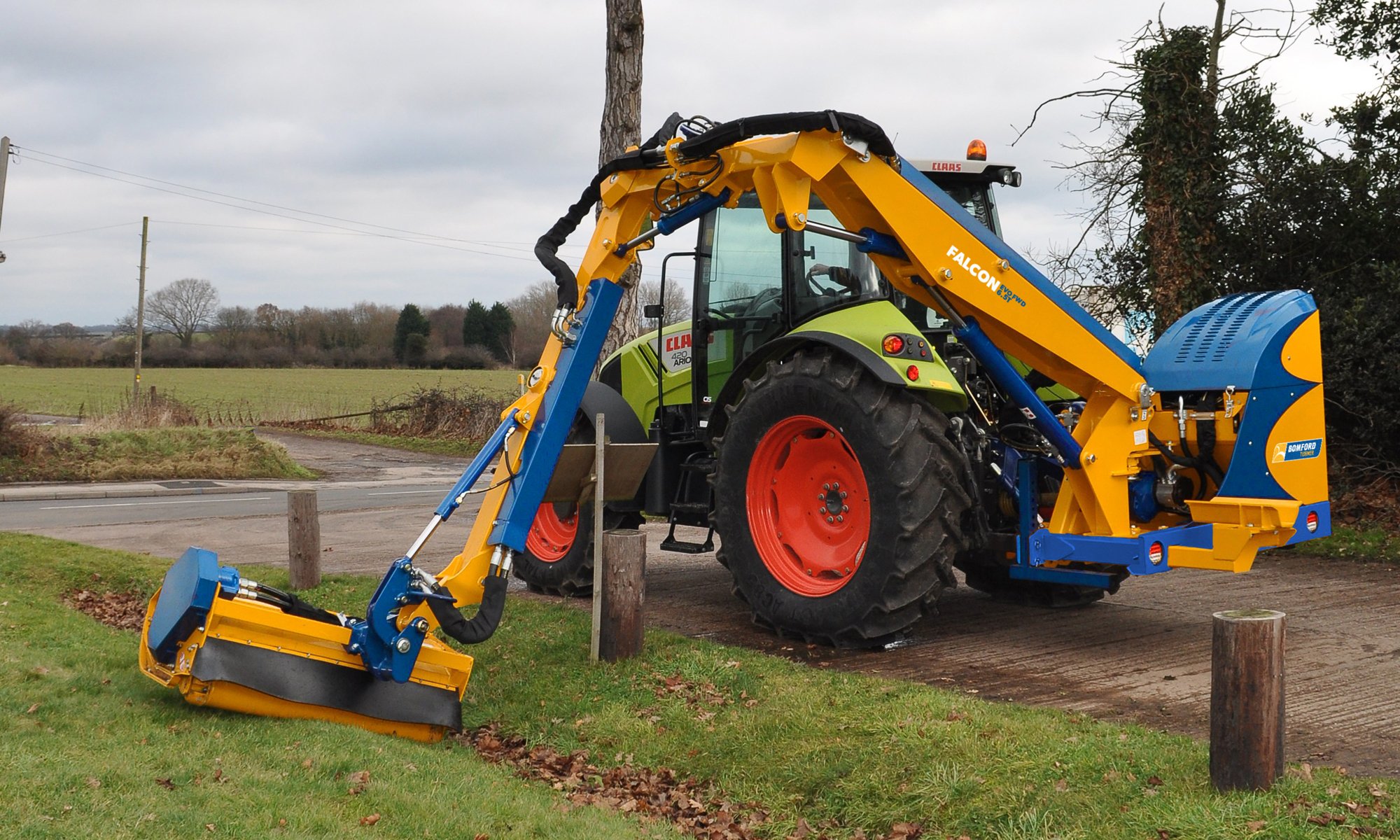

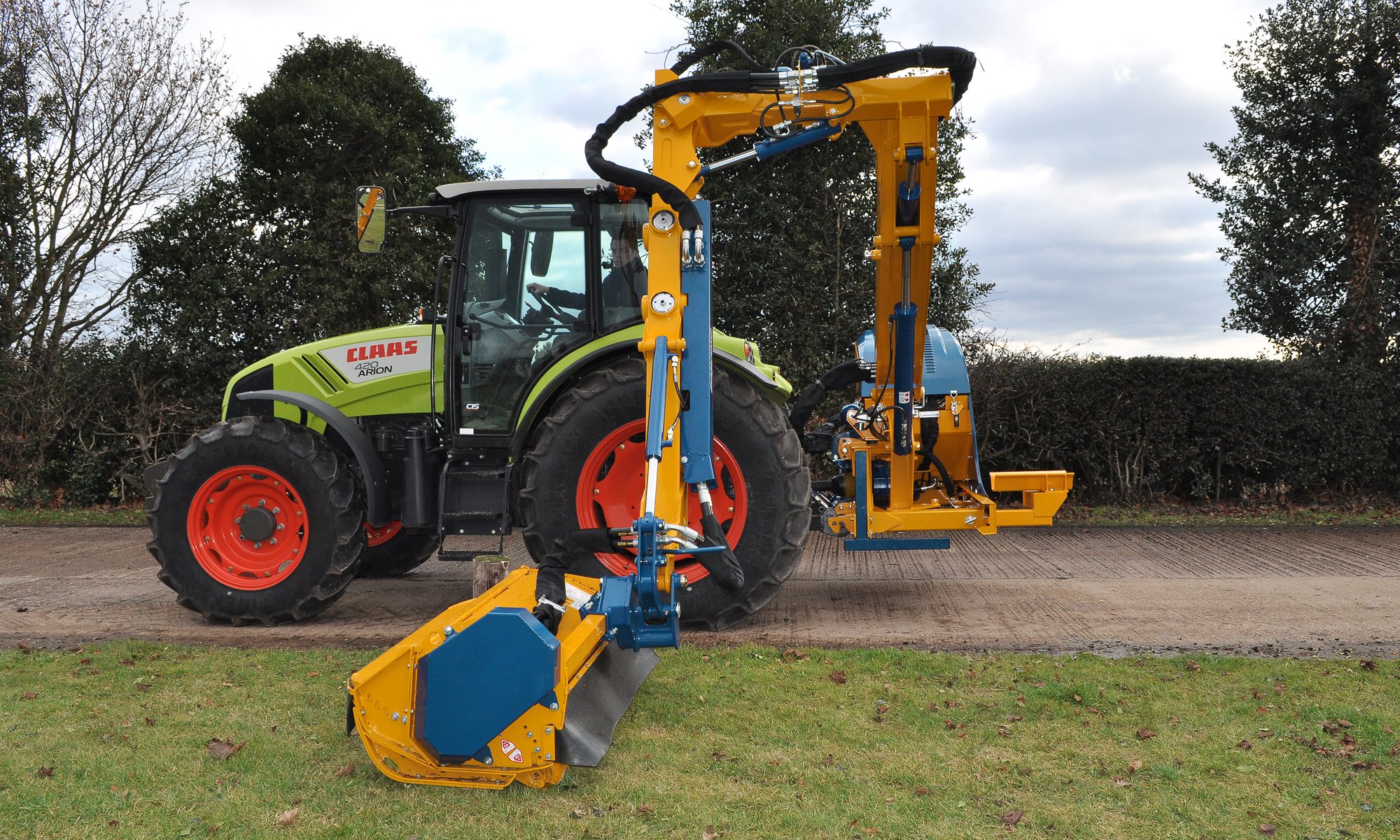

The Falcon Evo Forward arm is perfect for contractors and municipal environments, where the added benefits of a forward arm is required to improve visibility.
With high specification options and a range of controls to select from, the Falcon range is first choice for contractors.
Key Features:
- 5.5m or 6.0/6.5m telescopic reach
- Fixed forward reach of 1.2m
- Heavy duty linkage on 5.5 or axle bracket mounted on 6.0 & 6.5
- 125 l/min independent system
- 1.2m or 1.5m cutting head
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Model |
FWD 5.5 (18’1″) |
FWD 6.0T (19’8″) |
FWD 6.5T (21’4″) |
Tractor Requirements
|
| Minimum horse power |
100hp |
120hp |
120hp |
| Minimum weight |
4500kg / 9921Lbs |
5000kg / 11023Lbs |
5500kg / 12125Lbs |
Base Unit Mounting Options
|
| Front mount |
Not Available |
Not Available |
Not Available |
| Mid-mount |
Not Available |
Not Available |
Not Available |
| Rear mount |
Standard |
Standard |
Standard |
| Three point linkage (CAT II) |
Standard |
Standard |
Not Available |
| Axle bracket |
Optional |
Optional |
Optional |
Overall machine parameters
|
| Machine weight with head and oil |
1990kg / 4387Lbs |
2190kg / 4828Lbs |
2245kg / 4950Lbs |
| Capacity of oil tank |
250 Litres / 66USG |
250 Litres / 66USG |
250 Litres / 66USG |
| Weight of machine with oil but without head |
1700kg / 3748Lbs |
1900kg / 4189Lbs |
1955kg / 4310Lbs |
Controls
|
| Cable control (CC) |
Standard |
Standard |
Standard |
| Low pressure hydraulics (LPH) |
Not Available |
Not Available |
Not Available |
| Electronic proportional control (EPP) |
Optional |
Optional |
Optional |
| Intelligent control system (ICS) |
Optional |
Optional |
Optional |
| Cable rotor reverse |
Standard |
Standard |
Standard |
| Electronic rotor reverse |
Optional |
Optional |
Optional |
Hydraulic system
|
| System capability |
74 hp |
74hp |
74hp |
| Pump flow rate |
125 Litres / 33USG |
125 Litres / 33USG |
125 Litres / 33USG |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
Gear |
| Pump arrangement (Twin / In-line) |
Twin |
Twin |
Twin |
| Independent hydraulics |
Standard |
Standard |
Standard |
| Oil cooler |
Standard |
Standard |
Standard |
Arm features and main frame
|
| Forward arm |
1200mm / 3’11” |
1200mm / 3’11” |
1200mm / 3’11” |
| Telescopic arm |
Standard |
Standard |
Standard |
| Telescopic arm stroke |
Not Available |
900mm / 35.5″ |
900mm / 35.5″ |
| Power slew |
Standard |
Standard |
Standard |
| Power slew angle |
94° |
94° |
94° |
| Gravity breakout protection |
Not Available |
Not Available |
Not Available |
| Hydraulic breakout protection |
Standard |
Standard |
Standard |
| Arm float – Manual operation |
Standard |
Standard |
Standard |
| Arm float – Electronic operation |
Optional |
Optional |
Optional |
| Head float – Manual operation |
Optional |
Optional |
Optional |
| Head float – Electronic operation |
Optional |
Optional |
Optional |
| Left hand cutting |
Optional |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
Optional |
| Left and right hand cutting |
Not Available |
Not Available |
Not Available |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
Optional |
| Ditch cleaner |
Optional |
Optional |
Optional |
| Rotary head |
Optional |
Optional |
Optional |
Accessories
|
| Road lights |
Standard |
Standard |
Standard |
| Debris blower |
Optional |
Optional |
Optional |
| Cab guard kit |
Standard |
Standard |
Standard |
Cutting Heads
|
| 1.2m Pro-Cut with 115mm roller |
Standard |
Standard |
Standard |
| 1.2m Pro-Cut with 150mm roller |
Standard |
Standard |
Standard |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
| <1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
| 2m HD head |
Optional |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 2m HD head |
Optional |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Working Reach Dimensions
Head used to calculations: 1.2 Pro-Cut
| |
FWD 5.5m (18’1″) |
FWD 6.0m T (19’8″) |
FWD 6.5m T (21’4″) |
| A |
5.58m |
18’4″ |
6.1m |
20′ |
6.55m |
21’6″ |
| B |
5.73m |
18’10” |
6.45m |
21’2″ |
6.71m |
22′ |
| C |
3.62m |
11’11” |
4.68m |
15’4″ |
4.90m |
16’11” |
| D |
4.99m |
16’5″ |
5.45m |
17’11” |
5.73m |
18’10” |
| E |
6.83m |
22’5″ |
7.56m |
24’10” |
7.79m |
25’7″ |
| X |
1.35m |
4’9″ |
1.35m |
4’9″ |
1.35m |
4’9″ |
| Y |
1.0m |
3’3″ |
1.0m |
3’3″ |
1m |
3’3″ |
